ALANS10001-4J41DT

Overview

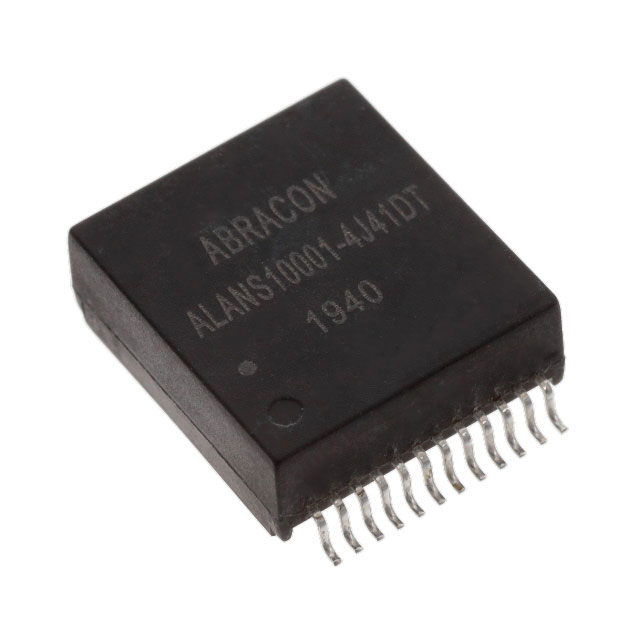

The ALANS10001-4J41DT is a LAN pulse transformer module designed for single-port 10/100/1000 Base-T applications. It features a surface mount (SMD/SMT) package with gull wing terminals and 24 pins. The component operates within a frequency range of 100 kHz to 100 MHz and has an inductance of 350 µH. Primary DC resistance is 1.2 Ohms, while secondary DC resistance is 0.9 Ohms. The physical dimensions are 14.4 mm in length, 16.6 mm in width, and 5.7 mm in height. It supports a turns ratio of 1CT:1CT and functions between -40°C and +85°C.

Feature Summary

• Designed for compatibility with 10 BASE-T, 100 BASE-TX, and 1000 BASE-T single port SMD LAN interfaces.
• Integrates LAN transformer and common mode choke (CMC) functionality in a compact surface mount package.
• Supports high-frequency operation ranging from 100 kHz to 100 MHz.

Applications

• 10/100/1000 Base-T network interface circuits
• Single-port Ethernet connectivity modules
• Surface mount LAN signal processing boards

Procurement Notes

Verify the specific suffix '4J41DT' against official Abracon documentation to confirm pinout configuration and terminal type. Ensure the selected variant matches the required operating temperature range and DC resistance specifications for the target circuit design. Cross-reference datasheet revision dates to validate current manufacturing status and compliance details.

Selection Notes

Select this component for designs requiring integrated LAN isolation and signal conditioning in a single SMD footprint. Consider the 24-pin gull wing package for standard surface mount assembly processes. Evaluate the 350 µH inductance and specified DC resistances against the PHY chip requirements to ensure signal integrity and impedance matching for Gigabit Ethernet speeds.

Part Context

This part belongs to the ALANS10001 series of LAN transformers from Abracon LLC. The series provides solutions for various Ethernet standards including 10/100/1000 Base-T. Variants within the series differ by suffix codes indicating specific winding configurations, terminal styles, and packaging options suitable for different board layouts and manufacturing needs.

Replacement Considerations

Public confirmed substitute part numbers include ALANS10001-4J61DT. Verify electrical parameters such as inductance and resistance before substitution. Ensure mechanical compatibility regarding the 24-pin gull wing package and overall dimensions.
