ALANS10002-6NA1DT

Overview

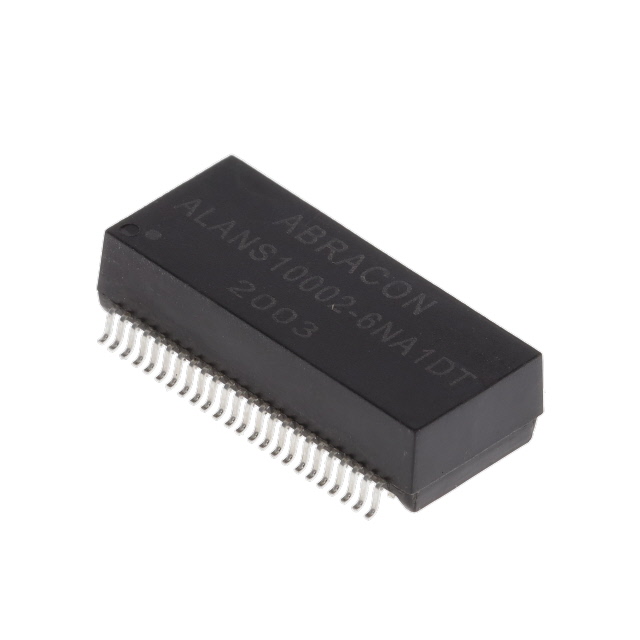

The ALANS10002-6NA1DT is a dual-port LAN transformer module from Abracon LLC, designed for surface mount applications. It supports 10BASE-T, 100BASE-TX, and 1000BASE-T Ethernet standards. The component operates within a frequency range of 100 kHz to 100 MHz and features an inductance of 350 µH. It accommodates temperatures from -40°C to +85°C. The package dimensions are 12.8 mm in length, 6.9 mm in width, and 5.45 mm in height.

Feature Summary

• Supports 10/100/1000 BASE-T Ethernet protocols
• Dual port configuration with SMD/SMT termination
• Integrated common mode choke functionality

Applications

• Ethernet network interface cards
• Industrial communication modules
• Consumer electronic networking devices

Procurement Notes

Verify the specific datasheet version for the ALANS10002-6NA1DT to confirm RoHS compliance status and detailed pinout configurations. Ensure that the PCB footprint matches the manufacturer's recommended land pattern to guarantee reliable soldering and electrical performance during assembly.

Selection Notes

Select this component when designing systems requiring integrated magnetics for Gigabit Ethernet connections. The dual-port design reduces board space compared to discrete solutions. Confirm that the operating temperature range meets the environmental requirements of the target application.

Part Context

This part belongs to the ALANS10002 series of LAN transformers. It serves as a critical interface between the MAC layer and the physical medium, providing signal isolation and noise suppression. The series is optimized for high-density PCB layouts in modern networking equipment.

Replacement Considerations

Check for direct substitutes within the ALANS10002 family or compatible dual-port LAN transformers from other manufacturers. Verify pin compatibility and electrical specifications before substitution.
