ALANS100X1-1E10ET

Overview

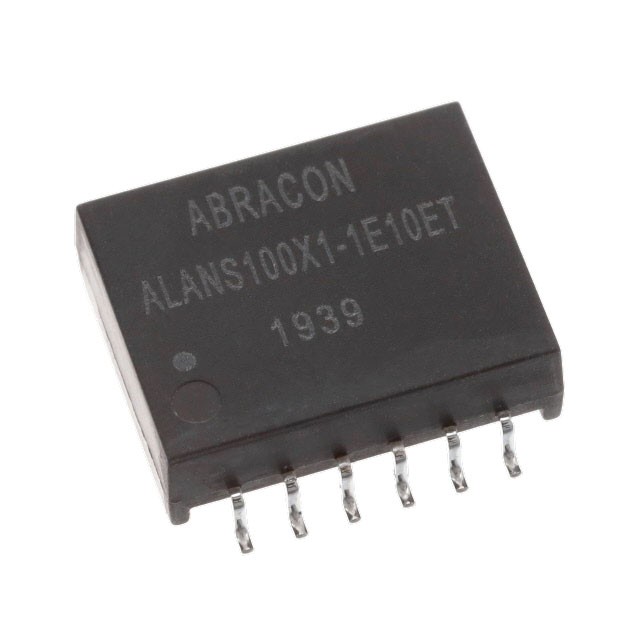

The ALANS100X1-1E10ET is a LAN transformer module designed for Ethernet applications. It supports 10/100 Base-TX standards with one port and features a 1CT:1CT configuration. The component has an inductance of 350 µH and provides 2.5 kV isolation. It operates within a temperature range up to 70°C. The device utilizes surface mount technology and belongs to the ALANS100X1 series.

Feature Summary

• Supports 10/100 Base-TX Ethernet standards
• Provides 2.5 kV isolation voltage
• Features integrated common mode choke

Applications

• Ethernet network interface circuits
• LAN connectivity modules
• Telecommunications equipment

Procurement Notes

Verify the specific operating temperature rating, as sources indicate both 70°C and -40°C to +85°C ranges. Confirm package dimensions and pinout against the official Abracon datasheet to ensure compatibility with the target PCB layout. Check RoHS compliance status directly from the manufacturer documentation before finalizing procurement.

Selection Notes

Select this component for single-port 10/100 Base-TX designs requiring high isolation. Ensure the thermal management plan accommodates the specified maximum operating temperature. Compare physical dimensions against available board space. Verify that the 350 µH inductance meets the signal integrity requirements of the specific PHY chip being used.

Part Context

This part belongs to the ALANS100X1 series of LAN transformers from Abracon. The series includes various configurations for different port counts and isolation levels. These components are engineered to meet IEEE 802.3u standards for reliable data transmission in local area networks.

FAQ

What is the isolation voltage of the ALANS100X1-1E10ET?

The component provides 2.5 kV of isolation voltage.

Does this transformer support Gigabit Ethernet?

No, it is designed specifically for 10/100 Base-TX applications.
