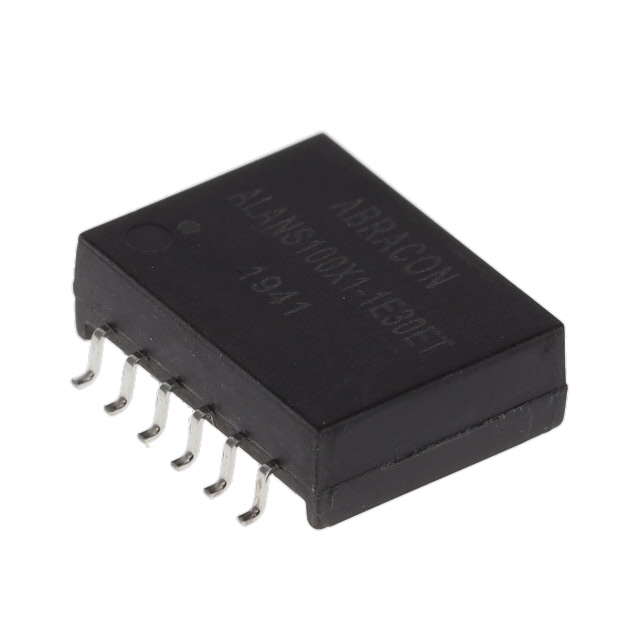

ALANS100X1-1E30ET

$2.13

Description：LAN SGL 100B XFMR&SRDCMC 12PIN
Series：ALANS100X1-1
Mfr：Abracon LLC
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:fedae69741b0 Category: Pulse Transformers Brand: Abracon LLC

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LAN SGL 100B XFMR&SRDCMC 12PIN
Series：ALANS100X1-1
Mfr：Abracon LLC
Package：Tape & Reel (TR),Cut Tape (CT)
Transformer Type：-
Inductance：350µH
ET (Volt-Time)：-
Turns Ratio - Primary:Secondary：1CT:1CT
Mounting Type：Surface Mount
Size / Dimension：0.583" L x 0.460" W (14.81mm x 11.68mm)
Height - Seated (Max)：0.197" (5.00mm)
Operating Temperature：0°C ~ 70°C
Grade：-
Qualification：-

Download product information

ALANS100X1-1E30ET

Overview

The ALANS100X1-1E30ET is a LAN transformer module manufactured by Abracon LLC, designed for 10/100 Base-TX applications. It features a dual-channel configuration with an inductance of 350 uH and operates within a frequency range of 100 kHz to 100 MHz. The component supports surface mount technology and functions reliably between -40°C and +85°C. Its physical dimensions are 14.81 mm in length, 11.68 mm in width, and 5.45 mm in height.
