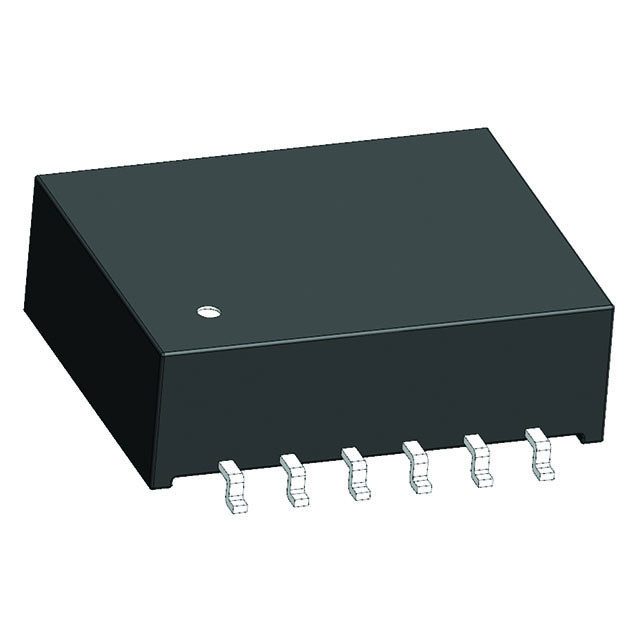

ALANS100X1-2F10ET
Search Product
Search Post
— IC芯片 | 连接器 | 传感器 | 被动器件 —
Consult the customer manager about the wholesale price.
consultation hotline：86-132-6715-2157
email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.
Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.
Product Detailed Parameters
- Description：LAN SGL 100B XFMR&CMC 16PIN
- Series：ALANS100X1-2
- Mfr：Abracon LLC
- Package：Tape & Reel (TR),Cut Tape (CT)
- Transformer Type：-
- Inductance：350µH
- ET (Volt-Time)：-
- Turns Ratio - Primary:Secondary：1CT:1CT
- Mounting Type：Surface Mount
- Size / Dimension：0.504" L x 0.272" W (12.80mm x 6.90mm)
- Height - Seated (Max)：0.222" (5.65mm)
- Operating Temperature：0°C ~ 70°C
- Grade：-
- Qualification：-
Download product information
Overview
The ALANS100X1-2F10ET is a LAN transformer module designed for 10/100 Base-TX applications. It features a single port configuration with a 1CT:1CT tuning ratio and 350 µH inductance. The component supports surface mount termination and operates within a frequency range of 100 kHz to 100 MHz. Physical dimensions are 12.8 mm in length, 6.9 mm in width, and 5.45 mm in height.
Feature Summary
- Integrated LAN transformer solution for Ethernet connectivity
- Supports 10/100 Base-TX network standards
- Surface mount package design for automated assembly
Applications
- 10/100 Base-TX network interface circuits
- Ethernet port isolation and signal conditioning
- Consumer electronics with wired connectivity
Procurement Notes
Verify the specific ordering suffix against the manufacturer's official documentation to ensure correct electrical characteristics and pinout configuration. Confirm that the component meets the required RoHS compliance standards for your target market. Check the latest datasheet for any updates regarding mechanical tolerances or thermal specifications before finalizing the bill of materials.
Selection Notes
Select this component when a single-port LAN transformer is required for 10/100 Base-TX designs. Ensure the PCB footprint matches the specified 12.8 mm by 6.9 mm dimensions. Consider the operating temperature range and insulation requirements relative to the system's safety standards and environmental conditions.
Part Context
This part belongs to the ALANS100X1 series from Abracon LLC, which provides integrated magnetic solutions for Ethernet applications. The series includes various configurations tailored for different port counts and performance levels. This specific model focuses on standard speed Ethernet connectivity with compact surface mount packaging.
Replacement Considerations
Consult the manufacturer's cross-reference guide for verified substitute part numbers. Ensure any replacement maintains identical pinout, inductance values, and physical dimensions to guarantee compatibility with existing PCB layouts and circuit designs.
