ALANS100X1-2F30DT

Overview

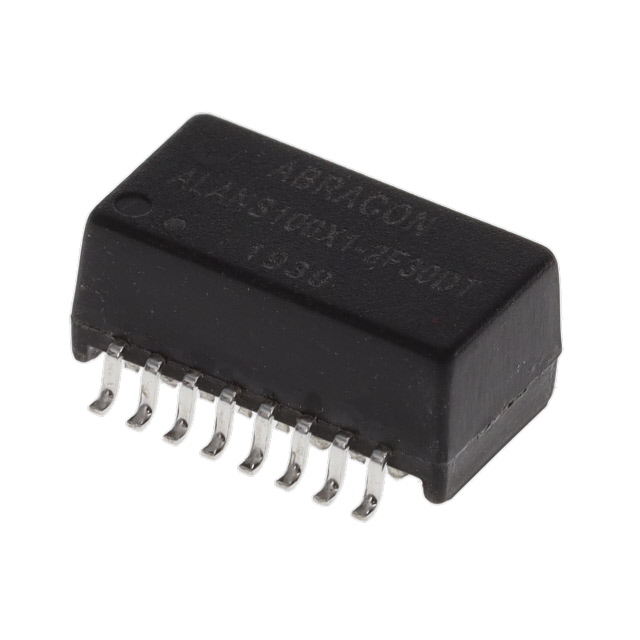

The ALANS100X1-2F30DT is a single-port LAN transformer module designed for 10/100 Base-TX applications. It features a dual-channel configuration with an inductance of 350 µH and operates within a frequency range of 100 kHz to 100 MHz. The component supports surface mount technology (SMD/SMT) and measures 12.8 mm in length, 6.9 mm in width, and 5.45 mm in height. It complies with RoHS standards and meets IEEE 802.3u requirements.

Feature Summary

• Complies with IEEE 802.3u standards for network connectivity
• Compatible with 10 BASE-T and 100 BASE-TX protocols
• Designed for single port SMD LAN integration

Applications

• 10 BASE-T network interface circuits
• 100 BASE-TX Ethernet connections
• Single port SMD LAN modules

Procurement Notes

Verify the specific ordering suffix to ensure correct packaging options, such as cut tape or reel configurations, are selected for the intended manufacturing process. Confirm that the component meets the required environmental operating temperature specifications for the target application environment before finalizing procurement orders.

Selection Notes

Select this component for designs requiring a single-port solution compatible with standard Ethernet speeds. Ensure the PCB layout accommodates the specified physical dimensions and surface mount footprint. Verify compatibility with the system's isolation voltage requirements and thermal management needs during operation.

Part Context

This part belongs to the ALANS100X1 series of LAN transformer modules manufactured by Abracon Corporation. The series provides integrated solutions for Ethernet connectivity, combining signal transformation and common mode choke functions into a compact surface mount package suitable for modern electronic devices.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.
