ALANS100X1-2F30LT

Overview

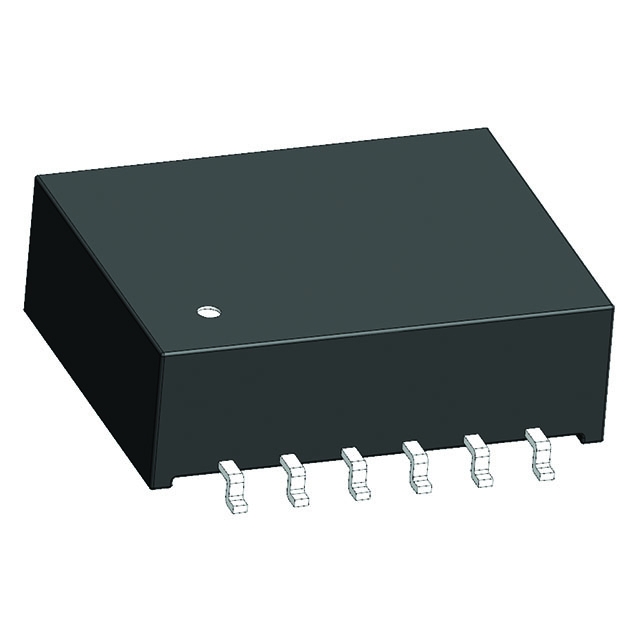

The ALANS100X1-2F30LT is a single-port LAN transformer module designed for 10/100 Base-TX applications. It features a surface mount package with dimensions of 12.8 mm length, 6.9 mm width, and 5.45 mm height. The component operates within a frequency range of 100 kHz to 100 MHz and includes an inductance of 350 µH. It supports dual channels and functions reliably between -40°C and +85°C.

Feature Summary

• Designed for compatibility with 10BASE-T and 100BASE-TX single port SMD LAN interfaces
• Integrates LAN transformer functionality with common mode choke capabilities
• Supports fast Ethernet data transmission standards

Applications

• Fast Ethernet network interfaces
• Server connectivity modules
• Network switch ports
• Router hardware components

Procurement Notes

Verify the specific suffix designation against official Abracon documentation to confirm exact electrical characteristics and pinout configuration. Ensure the selected variant matches the required thermal operating range and physical footprint constraints for the target PCB layout. Cross-reference manufacturer part numbers to avoid confusion with similar series components.

Selection Notes

Select this component when designing circuits requiring integrated isolation and signal conditioning for single-port Ethernet connections. Consider the specified temperature range and surface mount form factor during mechanical integration. Validate that the 350 µH inductance and voltage isolation requirements align with the system's electromagnetic interference mitigation needs.

Part Context

This module belongs to the ALANS100X1 series from Abracon LLC, which provides specialized audio and signal transformers for local area network applications. The series focuses on compact solutions for high-speed data communication, offering integrated magnetic components to simplify board design and reduce overall system size.

Replacement Considerations

ALANS100X1-2F10DT
