ALDF1212W

Overview

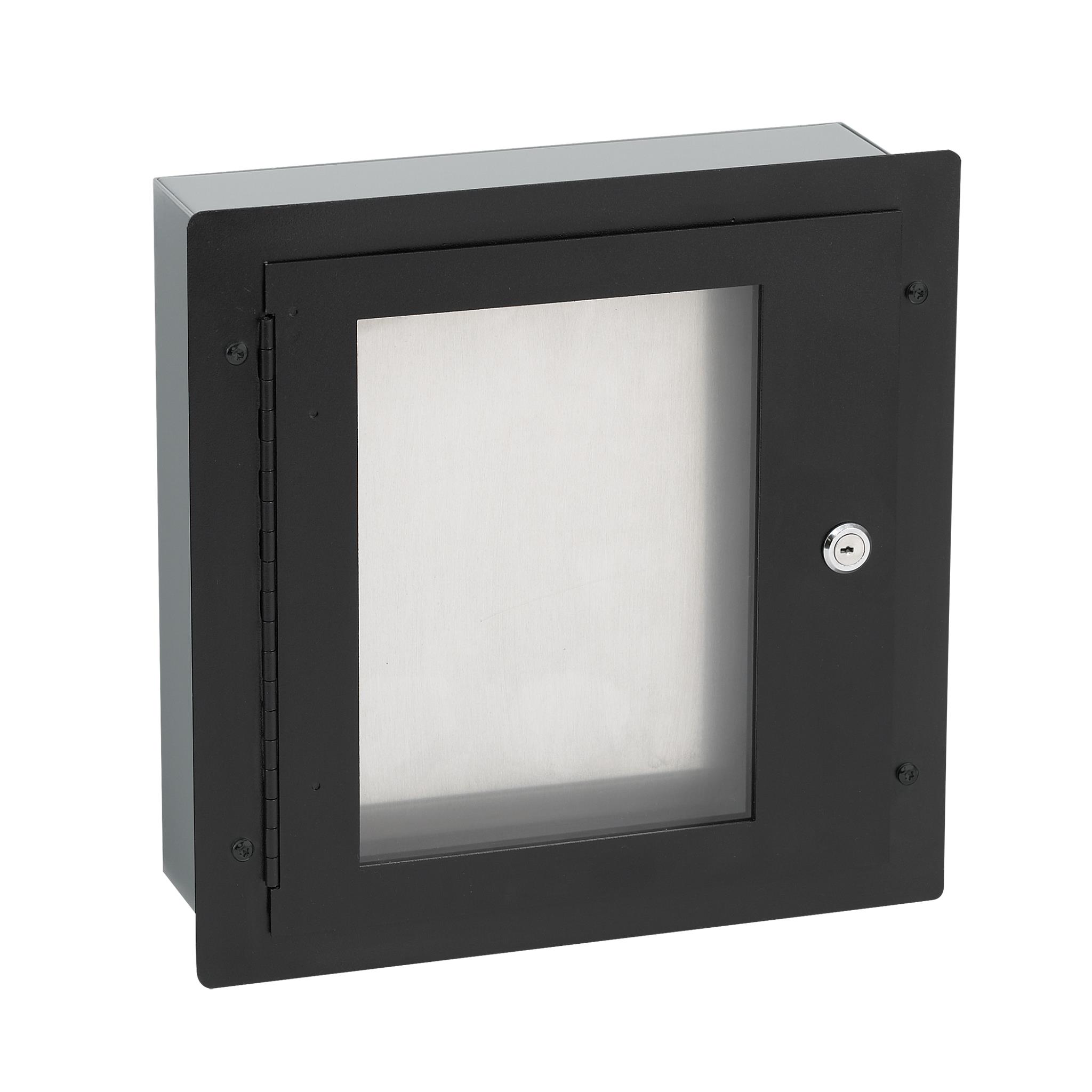

The ALDF1212W is a Type 1 Locking Window Pull Box Accessory manufactured by nVent Hoffman. Designed for NEMA 1 enclosures, it features a black steel construction with a flush surface mount configuration. The unit includes a removable aluminum dead-front mounting surface to facilitate component cutouts and is secured using four Torx-head screws. It fits enclosures measuring 12.00 x 12.00 inches, with an overall frame size of 13 inches in height and width. The window dimensions are 7.88 inches wide by 10.25 inches high, accommodating a cutout of approximately 10 x 10.14 inches.

Feature Summary

• Provides secure access control for light switches and controls via a locking window mechanism
• Includes a removable aluminum dead-front mounting surface for flexible component integration
• Constructed from durable black steel with a flush surface finish suitable for indoor environments

Applications

• Installation on NEMA 1 industrial enclosures requiring public access prevention
• Mounting light switches and control panels in commercial or industrial settings
• Retrofitting existing pull boxes with secure viewing and operation capabilities

Procurement Notes

Verify enclosure compatibility before purchase, as this accessory is specifically designed for 12.00 x 12.00 inch frames. Confirm that the target application requires Type 1 protection standards. Ensure the installation environment is indoors, as Type 1 ratings do not support outdoor exposure. Check for necessary mounting hardware, although Torx screws are typically included. Validate that the required cutout dimensions align with the specified 10 x 10.14 inch opening.

Selection Notes

Select this model when securing electrical controls within indoor NEMA 1 environments. It is appropriate for applications needing visual monitoring of switch positions without compromising security. Consider the black steel finish for aesthetic consistency with standard Hoffman enclosures. Ensure the available space accommodates the 13-inch frame size. This accessory is ideal for retrofitting older pull boxes or specifying new installations where locked access is mandatory.

Part Context

This part belongs to the nVent Hoffman A90P1 series of pull box accessories. These components are engineered to enhance the functionality and security of standard industrial enclosures. The series focuses on providing safe, accessible interfaces for user controls while maintaining environmental protection ratings. The ALDF1212W represents a specific size variant within this lineup, tailored for compact 12x12 inch enclosure configurations commonly used in distributed control systems.

Replacement Considerations

No direct substitute part numbers are publicly confirmed for this specific model.
