Product Detailed Parameters
- Description：FERRITE BEAD 110 OHM AXIAL 1LN
- Series：ALFB
- Mfr：Abracon LLC
- Package：Bulk
- Filter Type：-
- Number of Lines：1
- Impedance @ Frequency：110 Ohms @ 100 MHz
- Current Rating (Max)：5A
- DC Resistance (DCR) (Max)：-
- Ratings：-
- Operating Temperature：-40°C ~ 85°C
- Package / Case：Axial, Split Radial Bend
- Mounting Type：Through Hole
- Height (Max)：0.197" (5.00mm)
- Size / Dimension：0.138" Dia (3.50mm)
- Features：-
Download product information
Overview

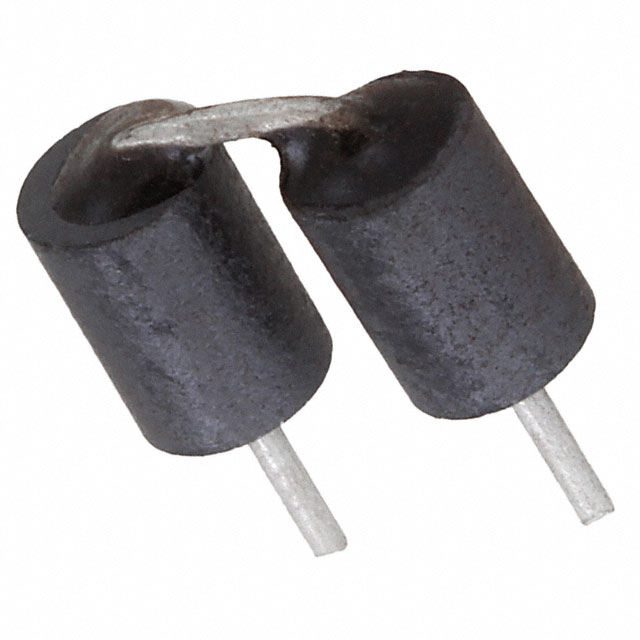

The ALFB-01 is a single-line ferrite bead manufactured by Abracon LLC, designed for through-hole axial mounting. It features a split radial bend package with dimensions of 3.50mm diameter and 5.00mm maximum height. The component provides an impedance of 110 Ohms at 100 MHz and supports a maximum current rating of 5A. It operates within a temperature range of -40°C to +85°C and holds a Moisture Sensitivity Level of 1.
Feature Summary
- Ferrite core construction for substantial electromagnetic interference suppression across a wide frequency range
- Axial leaded design with split radial bend configuration for standard through-hole integration
- RoHS compliant and lead-free manufacturing
Applications
- Electromagnetic interference (EMI) suppression in electronic circuits
- Prevention of signal distortion in high-current applications
- Filtering noise in power supply lines
Procurement Notes
Verify the specific part number ALFB-01 against manufacturer documentation to confirm RoHS compliance and lead-free status. Ensure the selected component matches the required 5A current rating and 110 Ohm impedance specifications for your circuit design. Confirm availability through authorized distributors to guarantee authenticity and traceability.
Selection Notes
Select this component when a through-hole ferrite bead with a 5A current capacity is required. The 110 Ohm impedance at 100 MHz makes it suitable for general EMI filtering. Consider the axial split-radial form factor for PCB layouts requiring specific lead bending or spacing constraints.
Part Context
This component belongs to the ALFB series of leaded ferrite beads from Abracon. These parts are engineered for robust EMI suppression in environments where surface-mount options are unsuitable. The series emphasizes durability and compliance with environmental standards such as RoHS.
Replacement Considerations
Consult official substitution guides for equivalent ferrite beads with matching 110 Ohm impedance and 5A current ratings. Verify that any alternative maintains the same axial package dimensions and operating temperature range.
