Product Detailed Parameters

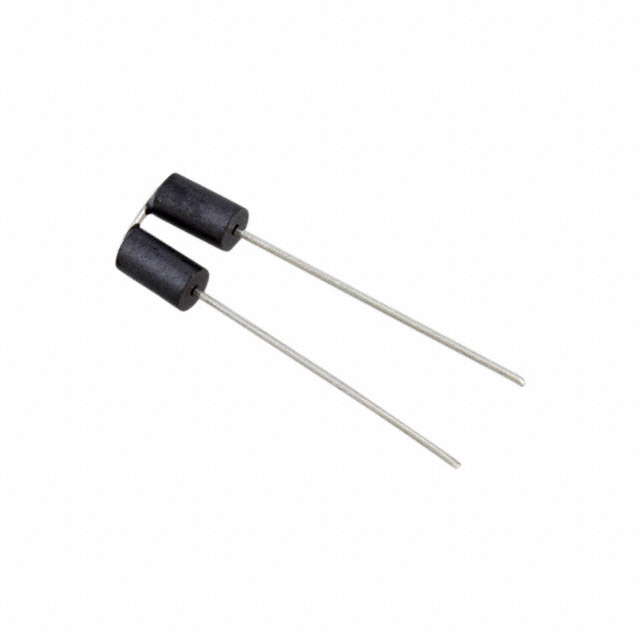

- Description：FERRITE BEAD 150 OHM AXIAL 1LN
- Series：ALFB
- Mfr：Abracon LLC
- Package：Bulk
- Filter Type：-
- Number of Lines：1
- Impedance @ Frequency：150 Ohms @ 100 MHz
- Current Rating (Max)：-
- DC Resistance (DCR) (Max)：-
- Ratings：-
- Operating Temperature：-40°C ~ 85°C
- Package / Case：Axial, Split Radial Bend
- Mounting Type：Through Hole
- Height (Max)：0.248" (6.30mm)
- Size / Dimension：0.138" Dia (3.50mm)
- Features：-
Download product information
Overview
The ALFB-02 is a single-line axial ferrite bead manufactured by Abracon LLC. It features a ferrite core construction with an impedance of 150 Ohms at 100 MHz. The component supports a rated current of 7 A and operates within a temperature range of -40°C to +85°C. It utilizes a through-hole mounting type in an axial package with split radial bends, measuring 3.50 mm in diameter and 6.30 mm in maximum height.
Feature Summary
- Constructs noise suppression using a ferrite core material for high-frequency interference reduction.
- Designed for through-hole installation with axial leads bent into a split radial configuration.
Applications
- Electromagnetic interference (EMI) filtering in power supply lines
- Signal integrity enhancement in digital circuitry
- Noise suppression in automotive electronic systems
Procurement Notes
Verify the specific impedance value of 150 Ohms at 100 MHz against design requirements. Confirm the 7 A current rating suffices for the target application's peak load. Ensure the axial split-radial package dimensions fit the printed circuit board layout constraints. Check RoHS compliance status if restricted substances are mandated.
Selection Notes
Select this component when a through-hole ferrite bead with a 150 Ohm impedance at 100 MHz is required. The 7 A current rating makes it suitable for higher-power applications compared to lower-rated alternatives. Consider the physical size of the axial package during PCB footprint design. Verify that the operating temperature range meets environmental conditions.
Part Context
This part belongs to the ALFB series of ferrite beads from Abracon LLC. These components are passive filters used to suppress electromagnetic interference. The series offers various impedance values and current ratings to suit different circuit needs while maintaining standard axial packaging for easy integration.
Replacement Considerations
Cross-reference with other 150 Ohm @ 100 MHz axial ferrite beads. Ensure substitute parts match the 7 A current rating and -40°C to +85°C temperature range. Verify identical package dimensions for mechanical compatibility.
