ALFT-04-7

Overview

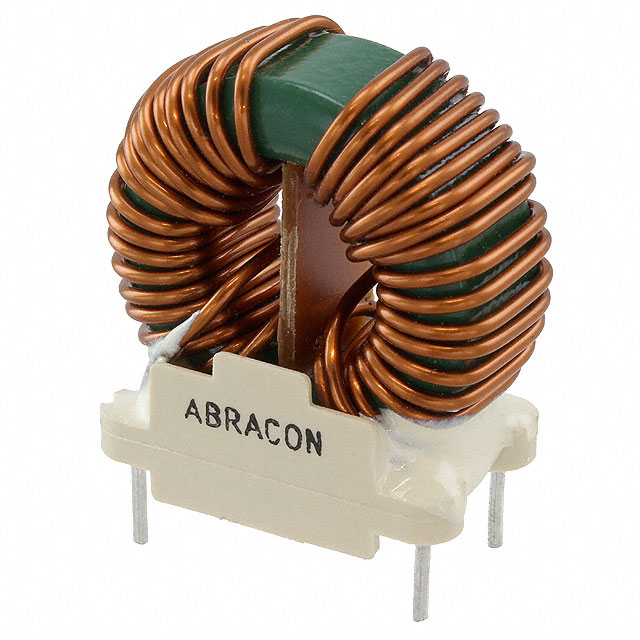

The ALFT-04-7 is a common mode filter choke from the ALFT series by Abracon LLC. It features a 4.5 mH inductance measured at 1 kHz with a 20% tolerance. The component supports a maximum DC current of 3.7 A and has a maximum DC resistance of 20 mOhms. Designed for PCB mounting via radial through-hole termination, it operates within a temperature range of -40°C to +125°C.

Feature Summary

• Provides common mode noise filtering for signal lines
• Supports high current applications up to 3.7 A
• Utilizes radial through-hole mounting for PCB integration

Applications

• Signal line filtering
• Common mode noise suppression
• Power supply input stages

Procurement Notes

Verify availability status as distribution may be limited. Confirm RoHS compliance details directly with the manufacturer or authorized distributors before procurement. Ensure the specific package dimensions and lead configurations match the target PCB layout requirements for proper installation.

Selection Notes

Select this component when a 4.5 mH inductance value is required for common mode rejection. Ensure the circuit design accommodates the 3.7 A current rating and the 20 mOhm DC resistance to minimize voltage drop. Verify that the operating environment stays within the specified -40°C to +125°C temperature range.

Part Context

This part belongs to the ALFT series of common mode chokes manufactured by Abracon LLC. The series offers various inductance and current ratings tailored for different filtering needs. The ALFT-04-7 specifically targets applications requiring moderate inductance with significant current handling capabilities in a through-hole package.

Replacement Considerations

Consult official datasheets for direct substitutes within the ALFT series. Verify that any replacement matches the 4.5 mH inductance, 3.7 A current rating, and 20 mOhm DCR specifications. Ensure physical footprint compatibility for through-hole mounting.
