Product Detailed Parameters
- Description：RF ANT 2.4GHZ BLADE RP SMA MALE
- Series：ALPHA 16
- Mfr：Siretta Ltd
- Package：Bulk
- RF Family/Standard：-
- Frequency Group：UHF (2GHz ~ 3GHz)
- Frequency (Center/Band)：2.4GHz
- Frequency Range：2.4GHz ~ 2.5GHz
- Antenna Type：Blade
- Number of Bands：1
- VSWR：2
- Return Loss：-
- Gain：2dBi
- Features：Cable - 3m
- Termination：RP-SMA Male
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Adhesive
- Height (Max)：-
- Applications：-
- Power - Max：-
Download product information
Overview

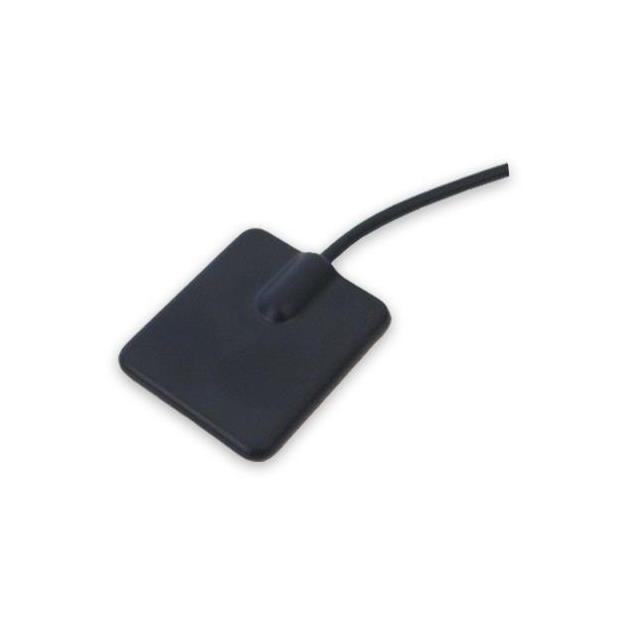

The Siretta ALPHA16/3M/SMAM/RP/RA/17 is a passive indoor WiFi antenna designed for the 2.4 GHz band. It features a 3-meter cable length and utilizes an SMA male connector with reverse polarity configuration. The unit incorporates a right-angle mounting interface, facilitating installation in constrained spaces. This component serves as a dedicated wireless communication element for devices requiring reliable 2.4 GHz signal transmission and reception.
Feature Summary
- Supports 2.4 GHz WiFi frequency bands
- Features a 3-meter coaxial cable assembly
- Equipped with SMA male reverse polarity connectors
- Includes a right-angle mounting design
Applications
- Indoor WiFi network expansion
- Wireless router external antenna replacement
- IoT device connectivity enhancement
- Industrial wireless sensor integration
Procurement Notes
Verify the specific reverse polarity SMA connector compatibility with the host device interface before procurement. Confirm that the 3-meter cable length aligns with the physical installation requirements and routing constraints of the target application environment to ensure optimal signal integrity.
Selection Notes
Select this model when a dedicated 2.4 GHz indoor solution with extended cabling is required. The right-angle form factor aids in tight installations. Ensure the host equipment supports reverse polarity SMA connections to maintain proper electrical interfacing without requiring additional adapters.
Part Context
This part belongs to the ALPHA series of antennas manufactured by Siretta Ltd. The series focuses on providing specialized wireless connectivity solutions for various industrial and commercial applications, emphasizing robust construction and reliable performance within designated frequency ranges.
Replacement Considerations
Direct substitutes must match the 2.4 GHz frequency range, SMA RP male connector type, and 3-meter cable length. Verify mechanical fit for the right-angle mounting configuration to ensure seamless integration into existing setups.
