ALPHA3A/0.2M/MMCXM/S/S/26

$13.24

Description：RF ANT 850MHZ/868MHZ BLADE MMCX
Series：ALPHA 3A
Mfr：Siretta Ltd
Package：Bulk

SKU:d9d3f9921d5e Category: RF Antennas Brand: Siretta Ltd

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：RF ANT 850MHZ/868MHZ BLADE MMCX
Series：ALPHA 3A
Mfr：Siretta Ltd
Package：Bulk
RF Family/Standard：802.15.4, Bluetooth, Cellular, WiFi
Frequency Group：Wide Band
Frequency (Center/Band)：850MHz, 868MHz, 900MHz, 915MHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.4GHz
Frequency Range：-
Antenna Type：Blade
Number of Bands：8
VSWR：2
Return Loss：-
Gain：3dBi
Features：-
Termination：MMCX Male
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Adhesive
Height (Max)：0.098" (2.50mm)
Applications：Bluetooth, GPRS, GSM, UMTS, WLAN, Zigbee™
Power - Max：-

Download product information

ALPHA3A/0.2M/MMCXM/S/S/26

Overview

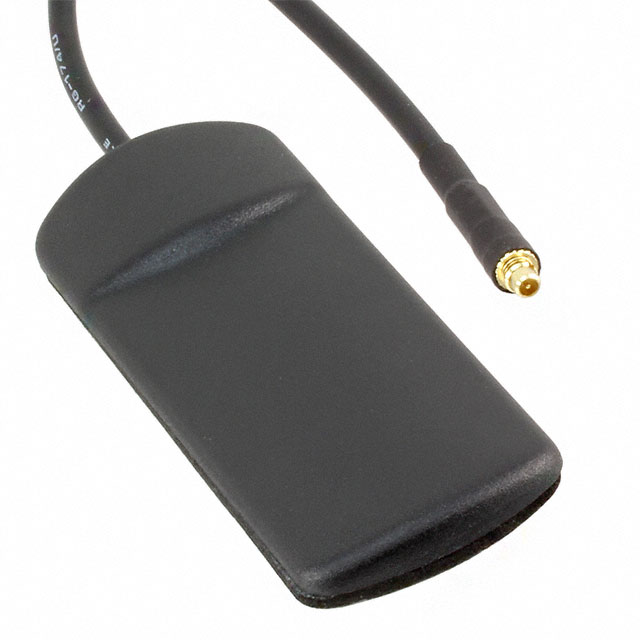

The ALPHA3A/0.2M/MMCXM/S/S/26 is a blade antenna manufactured by Siretta Ltd, designed for operation within the 2.4GHz to 2.5GHz frequency range. It features an MMCX male connector and utilizes linear polarization with a gain of 2.62dBi. The unit includes a 0.2-meter cable length and incorporates adhesive mounting for installation. It maintains a VSWR of 2 and operates at a characteristic impedance of 50 ohms.

Feature Summary

Blade form factor with adhesive mounting mechanism
Linear polarization optimized for compact integration
MMCX male connector interface for direct connection

Applications

Bluetooth device connectivity
WLAN (Wi-Fi) signal transmission
Zigbee network communication

Procurement Notes

Verify the specific connector type and cable length against system requirements before ordering. Confirm that the adhesive mounting method is suitable for the intended surface material and environmental conditions. Ensure the operating frequency range aligns with the target application protocols.

Selection Notes

Select this component when a low-profile, internally mounted solution is required for 2.4GHz applications. The adhesive backing simplifies installation in enclosed spaces where external connectors are impractical. Consider the 0.2m cable length for proximity routing needs.

Part Context

This model belongs to Siretta's series of compact RF antennas tailored for short-range wireless protocols. It is engineered for indoor or embedded applications where space constraints limit the use of larger external antennas. The design prioritizes ease of integration into consumer electronics and IoT devices.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Verify compatibility with existing PCB layouts and connector specifications if considering alternative vendors.
