Product Detailed Parameters

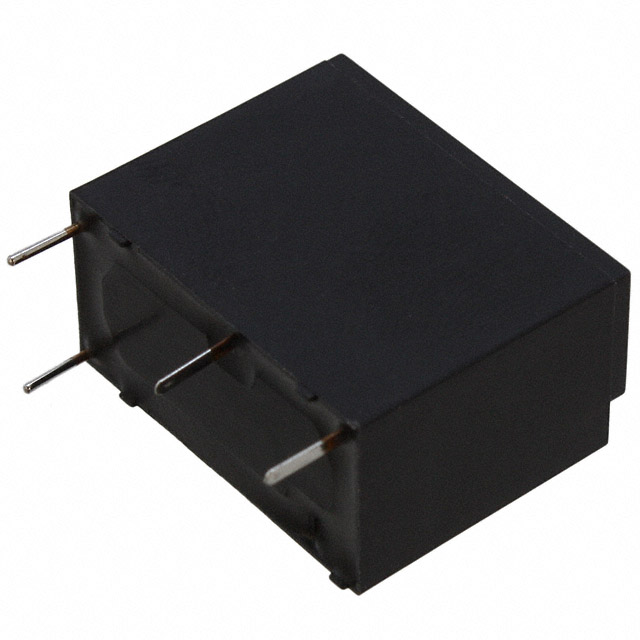

- Description：RELAY GEN PURPOSE SPST 10A 18V
- Series：ALQ
- Mfr：Panasonic Electric Works
- Package：Box
- Mounting Type：Through Hole
- Coil Voltage：18VDC
- Contact Form：SPST-NO (1 Form A)
- Contact Rating (Current)：5:00 AM
- Switching Voltage：250VAC, 30VDC - Max
- Load - Max Switching：1250VA, 150W
- Coil Current：11.1 mA
- Coil Type：Non Latching
- Features：-
- Termination Style：PC Pin
- Seal Rating：-
- Coil Insulation：Class B
- Must Operate Voltage：13.5 VDC
- Must Release Voltage：0.9 VDC
- Operating Temperature：-40°C ~ 85°C
- Contact Material：Silver Nickel (AgNi)
- Approval Agency：CQC, cURuus, VDE
- Relay Type：General Purpose
- Grade：-
- Qualification：-
- Operate Time：20 ms
- Release Time：20 ms
