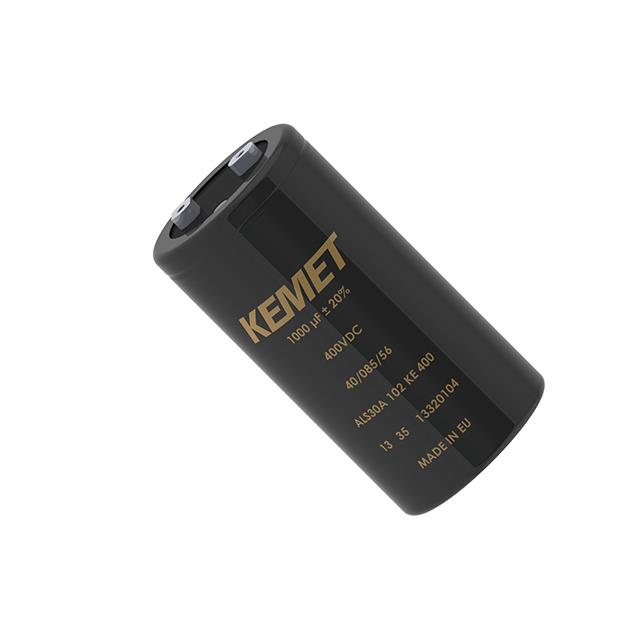

ALS30A682NP350 is listed in the Aluminum Electrolytic Capacitors range at ChipApex. The manufacturer field lists KEMET. Its product description is CAP ALUM SCRW TERM 85C. Review the specifications below when checking this part for your BOM.
Aluminum Electrolytic Capacitors specifications for ALS30A682NP350
- Description：CAP ALUM SCRW TERM 85C
- Series：ALS30
- Mfr：KEMET
- Package：Box
- Capacitance：6.8 mF
- Tolerance：±20%
- Voltage - Rated：350 V
- ESR (Equivalent Series Resistance)：23mOhm @ 100Hz
- Lifetime @ Temp.：5000 Hrs @ 85°C
- Operating Temperature：-40°C ~ 85°C
- Polarization：Polar
- Ratings：-
- Applications：General Purpose
- Ripple Current @ Low Frequency：19.3 A @ 100 Hz
- Ripple Current @ High Frequency：26 A @ 10 kHz
- Lead Spacing：1.252" (31.80mm)
- Size / Dimension：3.031" Dia (77.00mm)
- Height - Seated (Max)：5.827" (148.00mm)
- Surface Mount Land Size：-
- Mounting Type：Chassis Mount
- Package / Case：Radial, Can - Screw Terminals
- Impedance：18 mOhms
Aluminum Electrolytic Capacitors datasheet and documents for ALS30A682NP350
