AM-16.000MAPY-T

Crystals Overview

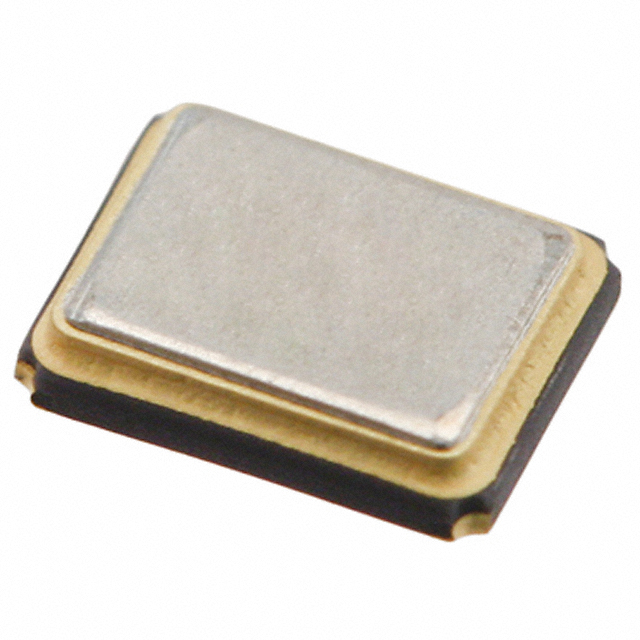

The AM-16.000MAPY-T is a surface-mount quartz crystal manufactured by TXC Corporation, designed for automotive applications under the AEC-Q200 qualification standard. It operates at a fundamental frequency of 16 MHz with a load capacitance of 7 pF and an equivalent series resistance of 100 Ohms. The component provides a frequency tolerance of ±30 ppm and a stability of ±50 ppm across an extended operating temperature range from -40°C to +105°C. Packaged in a compact 3.2 mm x 2.5 mm SMD footprint, it utilizes a glass-sealed ceramic construction to ensure long-term reliability and environmental robustness in demanding electronic systems.

Crystals Feature Summary

• AEC-Q200 qualified for automotive grade reliability
• Glass-sealed ceramic package for enhanced durability
• Extended temperature operation up to 105°C
• Compact 3.2mm x 2.5mm surface mount form factor

Crystals Applications

• Automotive infotainment system clocking
• Engine control unit timing references
• Telematics module synchronization
• ADAS sensor interface circuits

Crystals Procurement Notes

Verify that the specific part number matches the required load capacitance of 7 pF and the ±30 ppm tolerance specification. Confirm the extended temperature rating of +105°C aligns with the target application environment. Ensure the supplier provides documentation confirming AEC-Q200 certification status. Check for any specific handling requirements associated with the glass-sealed ceramic package during assembly processes.

Crystals Selection Notes

Select this component when a small footprint combined with high thermal stability is required for automotive electronics. The 7 pF load capacitance necessitates careful circuit design to match the oscillator input requirements. Consider the 100 Ohm ESR value when evaluating power consumption and drive level constraints within the host oscillator circuit architecture.

Crystals Part Context

This component belongs to the AM series of automotive crystals from TXC Corporation. The series is characterized by its use of glass-sealing technology to protect the quartz resonator element from moisture and contaminants. This construction method supports the stringent reliability standards mandated by automotive industry regulations, ensuring consistent performance over the vehicle's operational lifespan.

Crystals Replacement Considerations

Direct substitutes must maintain the 16 MHz frequency, 7 pF load capacitance, and AEC-Q200 qualification. Verify that alternative parts support the same 3.2 mm x 2.5 mm package dimensions and -40°C to +105°C temperature range to ensure mechanical and thermal compatibility without redesigning the PCB layout.
