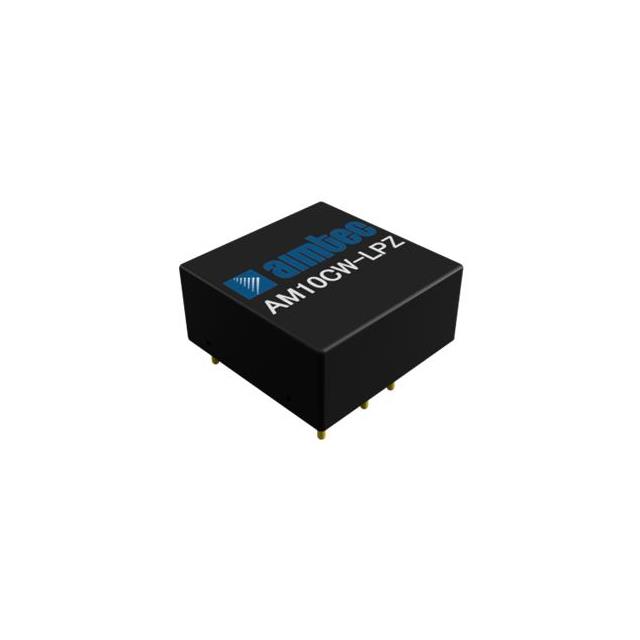

AM10CW-2405SLPZ is listed in the DC DC Converters range at ChipApex. The manufacturer field lists aimtec. Its product description is 9~36VDC 5V 2A 10W. Review the specifications below when checking this part for your BOM.
DC DC Converters specifications for AM10CW-2405SLPZ
- Description：9~36VDC 5V 2A 10W
- Series：AM10CW-LPZ (10W)
- Mfr：aimtec
- Package：Tube
- Type：Isolated Module
- Number of Outputs：1
- Voltage - Input (Min)：9V
- Voltage - Input (Max)：36V
- Voltage - Output 1：5V
- Voltage - Output 2：-
- Voltage - Output 3：-
- Voltage - Output 4：-
- Current - Output (Max)：2A
- Power (Watts)：10 W
- Voltage - Isolation：1.5 kV
- Applications：ITE (Commercial)
- Features：Remote On/Off, OCP, OVP, SCP
- Operating Temperature：-40°C ~ 85°C
- Efficiency：82%
- Mounting Type：Through Hole
- Package / Case：6-DIP Module
- Size / Dimension：1.00" L x 1.00" W x 0.46" H (25.4mm x 25.4mm x 11.8mm)
- Supplier Device Package：6-DIP Module
- Control Features：-
- Approval Agency：CE
- Standard Number：62368-1
- Grade：-
- Qualification：-
DC DC Converters datasheet and documents for AM10CW-2405SLPZ
