AM1230B1019

Overview

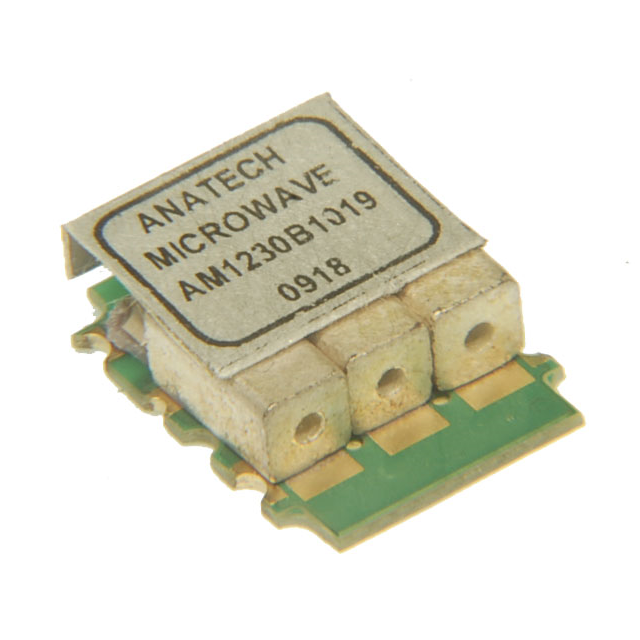

The AM1230B1019 is a ceramic bandpass filter manufactured by Anatech Electronics Inc. It operates at a center frequency of 1230 MHz with a bandwidth of 140 MHz, covering the range from 1160 to 1300 MHz. The component features an insertion loss of less than 1.5 dB and is designed for a system impedance of 50 ohms. It is housed in a 10-SMD module package measuring 34.00 mm in length and 14.00 mm in width. The device complies with RoHS3 standards.

Feature Summary

• Utilizes ceramic construction for stable RF filtering performance
• Provides bandpass characteristics centered at 1230 MHz
• Designed for 50-ohm impedance systems
• Available in a surface-mount SMD module configuration

Applications

• Radio frequency signal processing
• Microwave communication systems
• Military electronic equipment
• Commercial RF infrastructure

Procurement Notes

Verify the specific datasheet version when sourcing, as manufacturer documentation may be hosted by distributors. Confirm that the received unit matches the 10-SMD package dimensions and RoHS3 compliance status. Ensure the supplier provides official Anatech Electronics Inc. documentation rather than generic descriptions. Cross-reference the part number against authorized distributor lists to avoid counterfeit components.

Selection Notes

Select this component when a fixed center frequency of 1230 MHz is required for RF applications. The 140 MHz bandwidth suits systems needing moderate selectivity around the 1.23 GHz region. Consider the 10-SMD footprint for PCB layout constraints. Verify that the 50-ohm impedance aligns with the surrounding circuit design requirements before integration.

Part Context

Anatech Electronics Inc. specializes in standard and custom radio frequency filters for military and commercial sectors. The AM1230B1019 belongs to their line of ceramic bandpass filters operating between 1001 and 2000 MHz. These components are engineered for reliability in demanding RF environments, offering precise frequency control through ceramic resonator technology.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source material. Consult the manufacturer directly for equivalent or alternative ceramic bandpass filters with similar center frequencies and bandwidth specifications.
