AM1230B1153

Overview

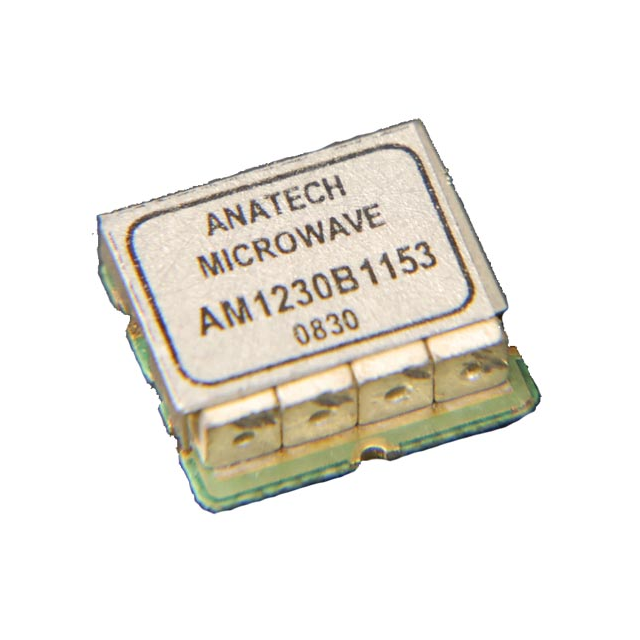

The AM1230B1153 is a ceramic band pass filter manufactured by Anatech Electronics Inc. It operates with a center frequency of 1.23 GHz and features a bandwidth of 130 MHz, covering a range from 1165 to 1295 MHz. The component is designed for a system impedance of 50 Ohms. It is housed in an 8-SMD module package with dimensions of 13.00mm x 12.00mm.

Feature Summary

• Provides band pass filtering characteristics centered at 1.23 GHz
• Designed for 50 Ohm RF systems
• Utilizes ceramic construction for signal processing

Applications

• RF signal conditioning in communication systems
• Frequency selection in microwave circuits
• Interference rejection in receiver front-ends

Procurement Notes

Verify the specific datasheet version for insertion loss and return loss specifications before integration. Confirm that the 8-SMD module footprint matches the PCB layout requirements. Ensure the operating temperature range aligns with the application environment. Cross-reference the manufacturer's part number to avoid counterfeit components.

Selection Notes

Select this component when a fixed center frequency of 1.23 GHz is required. The 130 MHz bandwidth suits applications needing moderate selectivity. The SMD package facilitates automated assembly. Consider the physical size constraints as the module measures 13.00mm by 12.00mm. Verify impedance matching for optimal performance in 50 Ohm networks.

Part Context

Anatech Electronics Inc. specializes in RF and microwave filters. This company produces various ceramic and SAW filters for industrial and commercial use. The AM1230B1153 belongs to their line of band pass filters designed for specific frequency bands. These components are used to isolate desired signals from noise.

Replacement Considerations

No public substitute part numbers are confirmed for this specific model.
