AM1370B1112

Overview

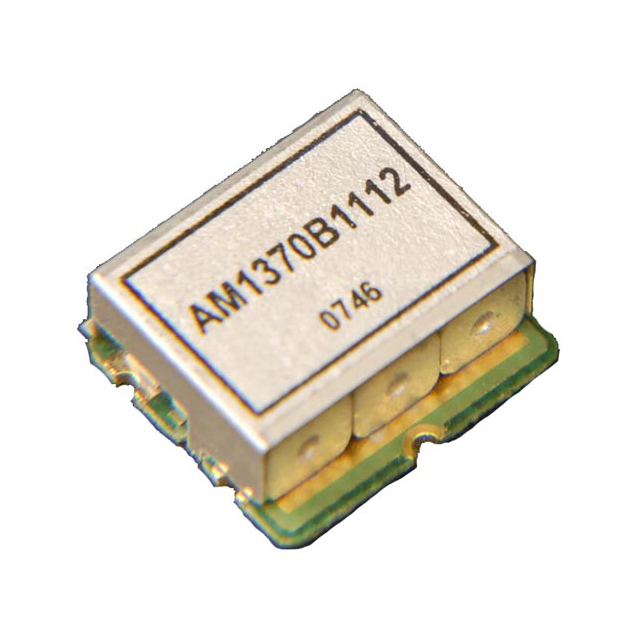

The AM1370B1112 is a ceramic band pass filter manufactured by Anatech Electronics Inc., designed for L-band applications. It operates with a center frequency of 1370 MHz and provides a bandwidth of 60 MHz. This component utilizes ceramic technology to achieve precise frequency filtering capabilities required in radio frequency systems.

Feature Summary

• Utilizes ceramic construction for stable RF performance
• Designed specifically for L-band application requirements
• Provides precise frequency filtering at the specified center frequency

Applications

• L-band radio frequency systems
• Precision frequency filtering applications
• Microwave communication circuits

Procurement Notes

Verify the specific datasheet parameters against your system requirements before procurement. Confirm RoHS3 compliance status as indicated in distributor listings. Ensure the Tape & Box packaging format aligns with your assembly equipment capabilities. Validate that the 1370 MHz center frequency matches your design specifications exactly.

Selection Notes

Select this component when a fixed 1370 MHz center frequency with 60 MHz bandwidth is required for L-band operations. Consider the ceramic construction if environmental stability is a priority. Verify compatibility with existing microwave circuit layouts. Ensure the package type meets your manufacturing constraints.

Part Context

Anatech Electronics Inc. specializes in the design and manufacturing of RF and microwave filters, including standard and custom solutions. The company holds ISO 9001:2015 certification and has been operating since 1990. Their product portfolio includes various filters, directional couplers, power dividers, circulators, and isolators for military and commercial sectors.

Replacement Considerations

No public confirmed substitute part numbers are available for the AM1370B1112. Consult Anatech Electronics directly for potential equivalent components or custom alternatives that meet identical electrical specifications.
