AM1400B1428

Overview

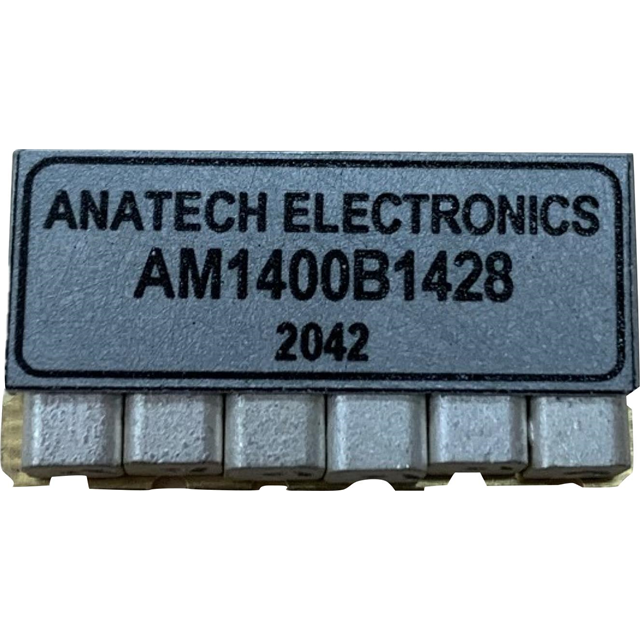

The AM1400B1428 is a ceramic band pass filter manufactured by Anatech Electronics Inc. It operates with a center frequency of 1400 MHz and provides a bandwidth of 400 MHz. The component features a 50 Ohm impedance and an insertion loss of 1 dB. It is housed in a 16-SMD module package, designed for surface-mount integration into RF circuits requiring precise frequency selection.

Feature Summary

• Utilizes ceramic technology for stable band pass filtering performance
• Designed for surface-mount assembly via 16-SMD module configuration
• Engineered for 50 Ohm system impedance compatibility

Applications

• Radio frequency signal processing
• Microwave communication systems
• Aerospace and defense electronics

Procurement Notes

Verify the specific manufacturer datasheet to confirm mechanical dimensions and electrical tolerances before integration. Ensure the 16-SMD footprint matches the target PCB layout. Confirm that the 1400 MHz center frequency aligns with the system requirements. Validate the 400 MHz bandwidth specification against the application's spectral needs. Check for any specific handling instructions regarding the ceramic construction.

Selection Notes

Select this component when a fixed 1400 MHz center frequency with 400 MHz bandwidth is required. The 16-SMD package suits automated surface-mount production lines. Consider the 1 dB insertion loss impact on overall system gain. Verify compatibility with 50 Ohm transmission lines. Ensure the ceramic construction meets environmental stability requirements for the intended operating conditions.

Part Context

Anatech Electronics Inc. specializes in designing and manufacturing radio frequency and microwave filters, diplexers, and components. The company serves commercial, aerospace, and defense markets with both standard and custom solutions. This filter represents their capability in producing high-frequency ceramic-based passive components for critical RF applications.

Replacement Considerations

No public confirmed substitute part numbers are available for this specific model.
