AM1440B987

Overview

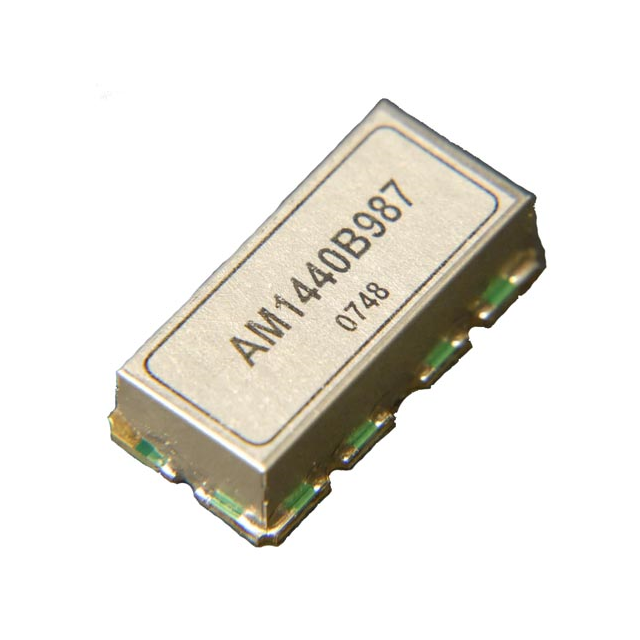

The AM1440B987 is a ceramic band pass filter manufactured by Anatech Electronics Inc. It features a center frequency of 1.44 GHz and a bandwidth of 310 MHz. The component operates with a characteristic impedance of 50 Ohms. It is housed in an 8-SMD module package, designed for surface mount applications in RF and microwave circuits.

Feature Summary

• Utilizes ceramic technology for stable RF filtering performance
• Designed as a band pass filter with specified center frequency and bandwidth
• Constructed in an 8-SMD surface mount module format

Applications

• RF signal processing systems
• Microwave communication equipment
• Military radio frequency applications

Procurement Notes

Verify the specific datasheet version for precise electrical tolerances and thermal characteristics before integration. Confirm that the 8-SMD footprint matches the target PCB layout dimensions. Ensure compliance with RoHS standards if required by the final assembly specifications. Cross-reference the manufacturer part number to avoid substitution errors during procurement.

Selection Notes

Select this component when a fixed 1.44 GHz center frequency with 310 MHz bandwidth is required. The 50 Ohm impedance rating must align with the system transmission line requirements. The SMD package type dictates the manufacturing assembly process. Verify that the ceramic construction meets the environmental stability needs of the intended application environment.

Part Context

Anatech Electronics Inc. specializes in the design and manufacturing of standard and custom RF filters for military and commercial sectors. This company holds ISO 9001:2015 certification and focuses on high-frequency components. The AM1440B987 represents their ceramic filter product line, targeting specific microwave frequency bands.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
