AM1488B1288

Overview

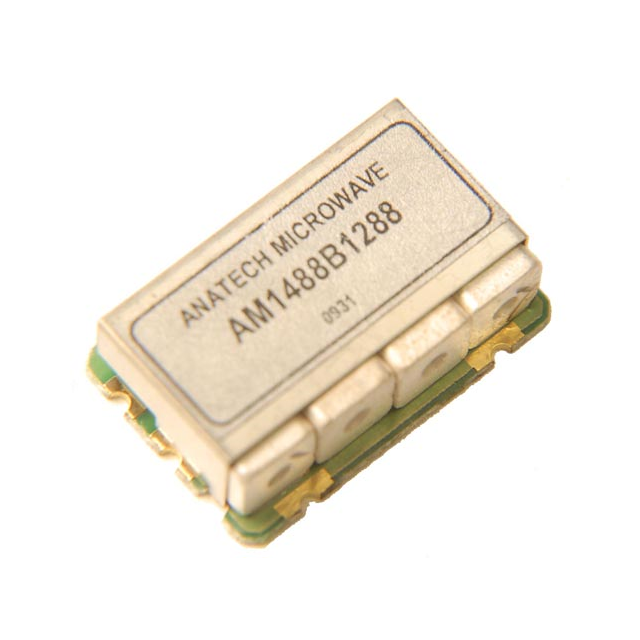

The AM1488B1288 is a ceramic band pass filter manufactured by Anatech Electronics Inc. It operates with a center frequency of 1.4884 GHz and features a bandwidth of 25 MHz. The component is designed for a system impedance of 50 Ohms. It is housed in a 10-SMD module package, specifically an SMD-10 configuration measuring 3x3 mm. This device is classified under RF & Microwave Filters.

Feature Summary

• Utilizes ceramic construction for stable RF filtering performance
• Designed as a band pass filter to isolate specific frequency ranges
• Integrated into a compact surface mount module for PCB integration

Applications

• RF signal processing systems requiring precise band selection
• Microwave communication equipment operating near 1.4884 GHz
• Test and measurement instrumentation filters

Procurement Notes

Verify the exact physical dimensions and pinout configuration against the official datasheet before integration. Confirm that the 50 Ohm impedance matches your circuit design requirements. Ensure the 10-SMD package footprint aligns with your PCB layout constraints. Check for RoHS compliance status if required by your manufacturing standards. Validate the center frequency specification against your application's spectral needs.

Selection Notes

Select this component when a fixed center frequency of 1.4884 GHz is required. The 25 MHz bandwidth defines the selectivity characteristics. The 50 Ohm impedance must match the source and load environments. The SMD form factor dictates the assembly method. Consider thermal management requirements associated with the ceramic material and module size.

Part Context

Anatech Electronics Inc. specializes in the design and manufacturing of radio frequency and microwave filters. The company produces both standard and custom components for military and commercial applications. The AM1488B1288 belongs to their line of ceramic filters, which are engineered for high stability and reliability in RF environments.

Replacement Considerations

No public substitute part numbers are confirmed for this specific model. Cross-referencing requires matching the 1.4884 GHz center frequency, 25 MHz bandwidth, 50 Ohm impedance, and 10-SMD package dimensions exactly.
