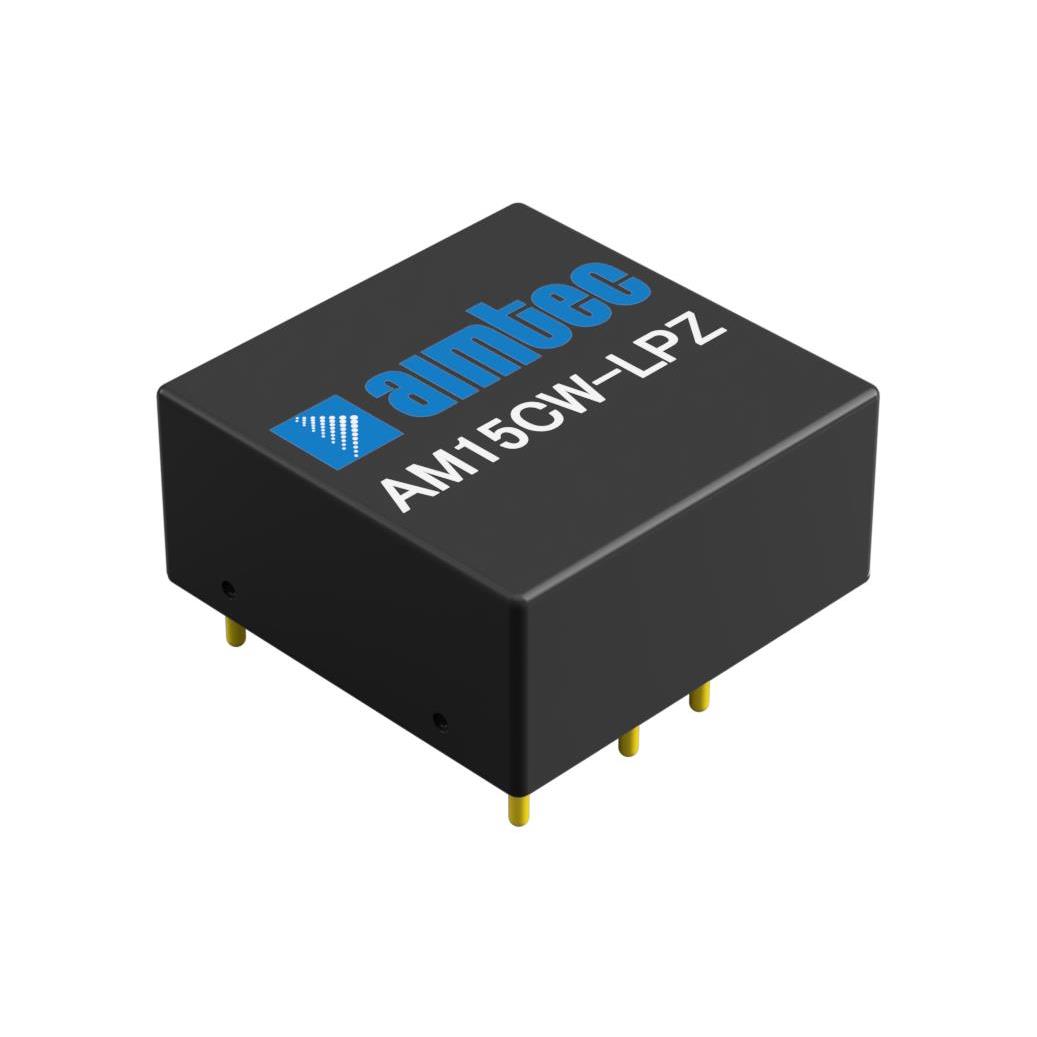

AM15CW-2405DLPZ is listed in the DC DC Converters range at ChipApex. The manufacturer field lists aimtec. Its product description is 9~36VAC 5VDC 1.5A 15W. Review the specifications below when checking this part for your BOM.
DC DC Converters specifications for AM15CW-2405DLPZ
- Description：9~36VAC 5VDC 1.5A 15W
- Series：*
- Mfr：aimtec
- Package：Tube
- Type：Isolated Module
- Number of Outputs：2
- Voltage - Input (Min)：9V
- Voltage - Input (Max)：36V
- Voltage - Output 1：-5V
- Voltage - Output 2：5V
- Voltage - Output 3：-
- Voltage - Output 4：-
- Current - Output (Max)：1.5A, 1.5A
- Power (Watts)：15 W
- Voltage - Isolation：1.5 kV
- Applications：ITE (Commercial)
- Features：OCP, OVP, SCP
- Operating Temperature：-40°C ~ 85°C (With Derating)
- Efficiency：87%
- Mounting Type：Through Hole
- Package / Case：6-DIP Module
- Size / Dimension：1.00" L x 1.00" W x 0.47" H (25.4mm x 25.4mm x 12.0mm)
- Supplier Device Package：6-DIP
- Control Features：-
- Approval Agency：CE
- Standard Number：62368-1
- Grade：-
- Qualification：-
DC DC Converters datasheet and documents for AM15CW-2405DLPZ
