AM1740B1206

Overview

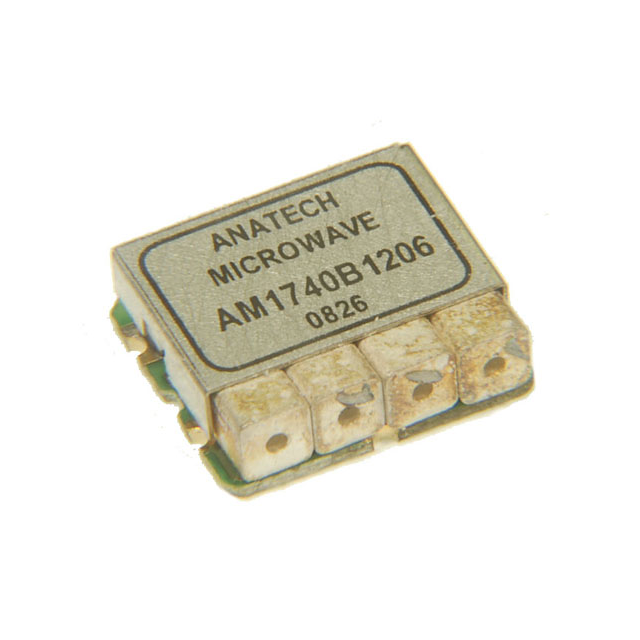

The AM1740B1206 is a ceramic bandpass filter manufactured by Anatech Electronics Inc. It operates with a center frequency of 1.74 GHz and provides a bandwidth of 60 MHz. The component features a 50 Ohm impedance and is housed in an 8-SMD module package. This device is designed for RF applications requiring precise frequency selection within the specified microwave range.

Feature Summary

• Utilizes ceramic construction for stable bandpass filtering characteristics
• Designed for 50 Ohm system integration
• Compact surface-mount module form factor

Applications

• RF signal processing systems
• Microwave communication equipment
• Frequency selective circuits

Procurement Notes

Verify the specific datasheet from Anatech Electronics Inc. to confirm detailed electrical parameters such as insertion loss, return loss, and power handling capabilities before procurement. Ensure the 8-SMD footprint matches the design layout requirements. Confirm active status and availability through authorized distributors.

Selection Notes

Select this component when a fixed 1.74 GHz center frequency with 60 MHz bandwidth is required. The 50 Ohm impedance must match the source and load impedances of the circuit. Consider the 8-SMD package size for PCB space constraints. Verify thermal and power specifications against application demands.

Part Context

Anatech Electronics Inc. specializes in RF and microwave filters, diplexers, and multiplexers. The AM1740B1206 belongs to their line of ceramic filters, which are engineered for reliable performance in demanding RF environments. The company focuses on both standard and custom-designed components for various electronic applications.

Replacement Considerations

Consult official substitution guides or contact Anatech Electronics Inc. directly for verified equivalent part numbers. Do not assume cross-compatibility with other manufacturers' filters without verifying impedance, bandwidth, and physical dimensions.
