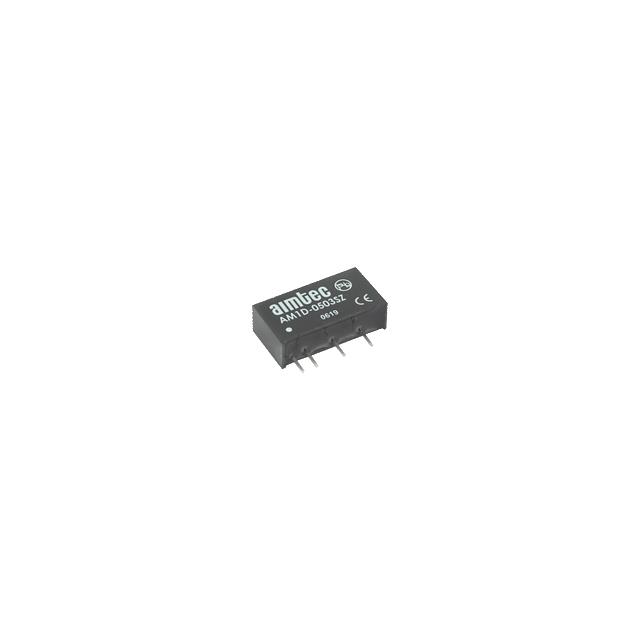

AM1D-050303DZ

AM1D-050303DZ is listed in the DC DC Converters range at ChipApex. The manufacturer field lists aimtec. Its product description is DC DC CONVERTER 2X3.3V 996.6MW. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for AM1D-050303DZ

• Description：DC DC CONVERTER 2X3.3V 996.6MW
• Series：AM1D-Z (1W)
• Mfr：aimtec
• Package：Tube
• Type：Isolated Module
• Number of Outputs：2
• Voltage - Input (Min)：4.5V
• Voltage - Input (Max)：5.5V
• Voltage - Output 1：3.3V
• Voltage - Output 2：3.3V
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：151mA, 151mA
• Power (Watts)：996.6 mW
• Voltage - Isolation：1 kV
• Applications：ITE (Commercial)
• Features：-
• Operating Temperature：-40°C ~ 85°C
• Efficiency：75%
• Mounting Type：Through Hole
• Package / Case：7-SIP Module, 6 Leads
• Size / Dimension：0.77" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：CE, cURus
• Standard Number：-
• Grade：-
• Qualification：-
