AM2072B1553

Overview

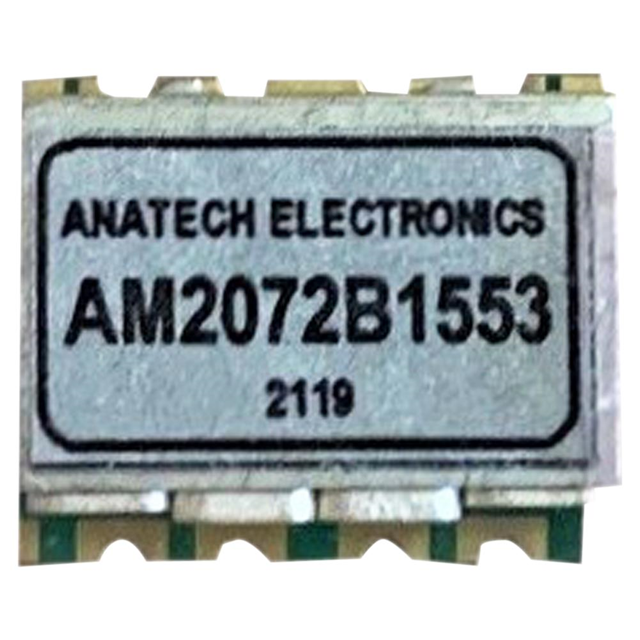

The AM2072B1553 is a ceramic bandpass filter manufactured by Anatech Electronics Inc., designed for RF and microwave applications. It operates at a center frequency of 2072 MHz with a bandwidth of 110 MHz. Key electrical specifications include a maximum VSWR of 1.5:1, a maximum insertion loss of 1.4 dB at the center frequency, and a maximum ripple within the bandwidth of 1.0 dB. This component is engineered to provide precise signal filtering in high-frequency communication systems.

Feature Summary

• Utilizes ceramic construction for stable RF performance
• Provides defined bandpass filtering at 2072 MHz
• Maintains low insertion loss and controlled VSWR

Applications

• RF communication systems
• Microwave signal processing
• Wireless infrastructure filtering

Procurement Notes

Verify the exact part number AM2072B1553 against manufacturer documentation to ensure compatibility with your specific RF design requirements. Confirm that the ceramic package type meets your board layout constraints. Check for any specific handling instructions related to sensitive RF components during installation.

Selection Notes

Select this component when a fixed center frequency of 2072 MHz and a 110 MHz bandwidth are required. Ensure the system can accommodate the specified 1.4 dB insertion loss and 1.5:1 VSWR limits. Verify that the ceramic housing fits within the available physical space in the assembly.

Part Context

Anatech Electronics Inc. specializes in the design and manufacturing of RF and microwave filters. The company produces various ceramic and other filter types for industrial and commercial use. This model belongs to their line of fixed-frequency bandpass filters intended for precise spectral selection in electronic circuits.

Replacement Considerations

No public substitute part numbers are confirmed for this specific model. Any replacement must match the 2072 MHz center frequency, 110 MHz bandwidth, and similar electrical characteristics to maintain system integrity.
