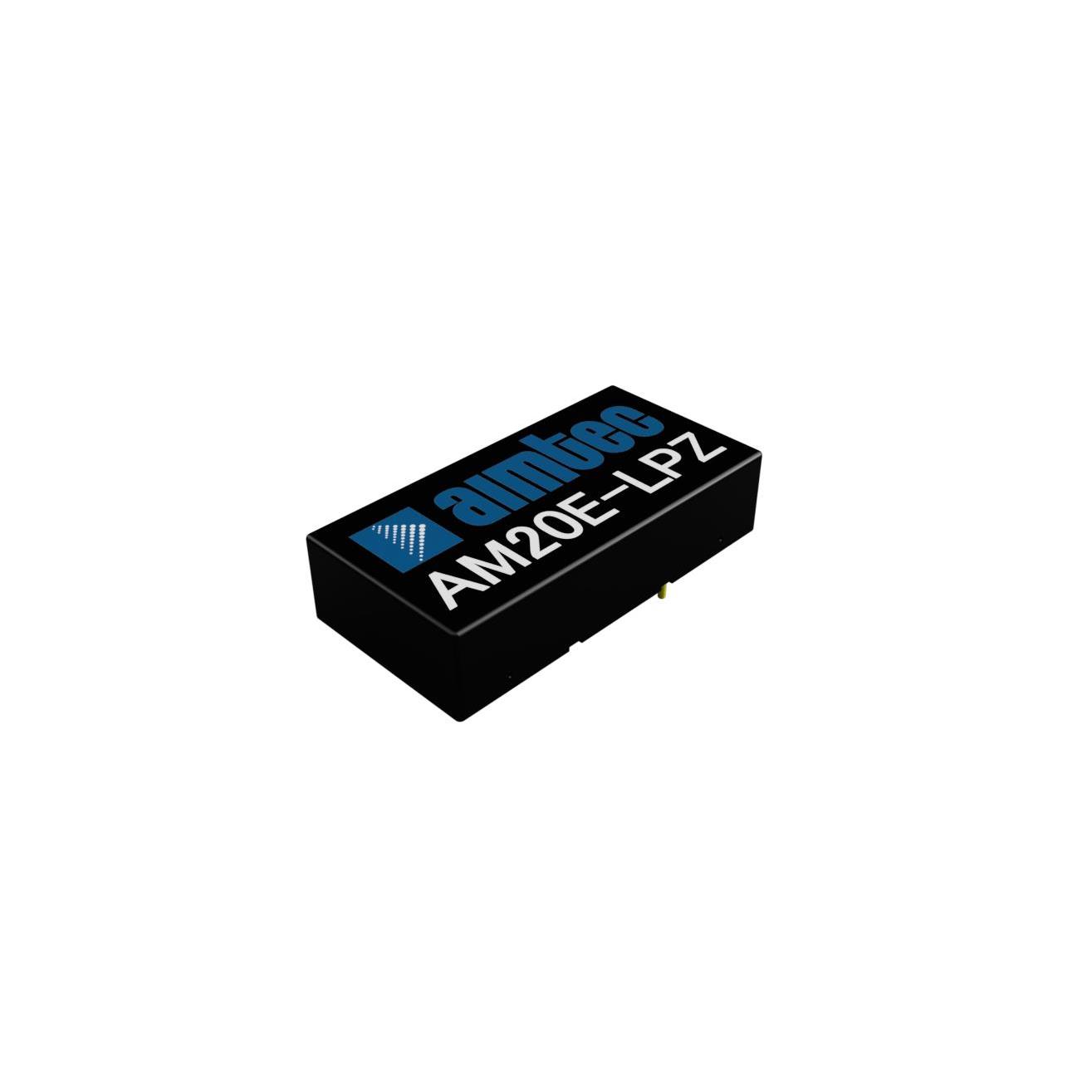

AM20E-4805SLPZ

AM20E-4805SLPZ is listed in the DC DC Converters range at ChipApex. The manufacturer field lists aimtec. Its product description is 36 75VDC 5VDC 4A 20W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for AM20E-4805SLPZ

• Description：36 75VDC 5VDC 4A 20W
• Series：AM20E-LPZ (20W)
• Mfr：aimtec
• Package：Tube
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：36V
• Voltage - Input (Max)：75V
• Voltage - Output 1：5V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：4A
• Power (Watts)：20 W
• Voltage - Isolation：1.5 V
• Applications：ITE (Commercial)
• Features：Remote On/Off, OCP, OVP, SCP
• Operating Temperature：-40°C ~ 85°C (With Derating)
• Efficiency：90%
• Mounting Type：Through Hole
• Package / Case：6-DIP Module
• Size / Dimension：2.00" L x 1.00" W x 0.47" H (50.8mm x 25.4mm x 12.0mm)
• Supplier Device Package：6-DIP Module
• Control Features：-
• Approval Agency：CE
• Standard Number：62368-1

DC DC Converters datasheet and documents for AM20E-4805SLPZ
