AM2185B1594

Overview

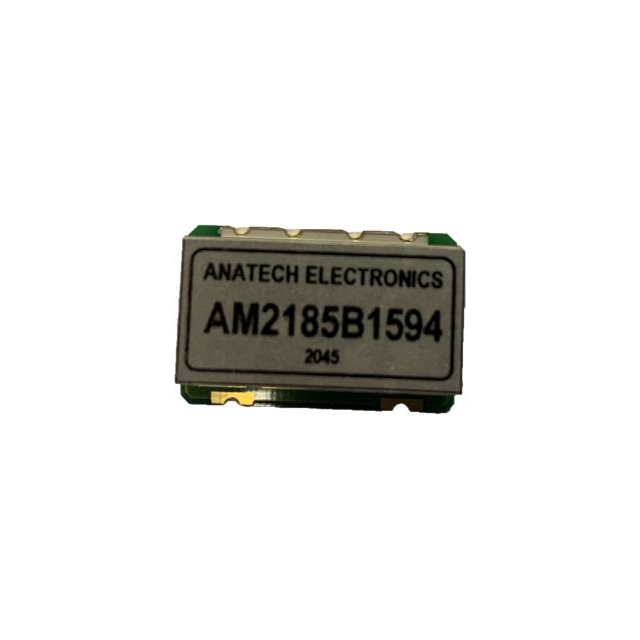

The AM2185B1594 is a ceramic bandpass filter manufactured by Anatech Electronics Inc. It operates with a center frequency of 2.185 GHz and provides a bandwidth of 30 MHz. The component features a 50 Ohm impedance and utilizes a 10-SMD surface-mount package. Electrical specifications include a maximum insertion loss of 2.5 dB at the center frequency, a maximum ripple within the bandwidth of 1.0 dB, and a minimum voltage standing wave ratio (VSWR) of 1.5:1.

Feature Summary

• Utilizes ceramic construction for stable RF filtering performance
• Designed as a bandpass filter with specified center frequency and bandwidth
• Configured for 50 Ohm system impedance compatibility

Applications

• RF signal processing in communication systems
• Frequency selection in wireless infrastructure
• Signal conditioning in microwave circuits

Procurement Notes

Verify the specific datasheet version from Anatech Electronics Inc. to confirm electrical tolerances and mechanical dimensions. Ensure the 10-SMD footprint matches the target PCB layout. Cross-reference the center frequency and bandwidth requirements against the application design specifications before procurement.

Selection Notes

Select this component when a fixed 2.185 GHz center frequency with 30 MHz bandwidth is required. The 50 Ohm impedance rating must align with the surrounding circuitry. Consider the 10-SMD package size for space-constrained designs requiring surface-mount integration.

Part Context

This part belongs to the Anatech Electronics Inc. ceramic filter series, which are designed for high-reliability RF applications. These filters typically offer sharp roll-off characteristics and stable performance across temperature variations, suitable for demanding electronic environments.

Replacement Considerations

No public substitute part numbers are confirmed for this specific model. Verify compatibility with existing designs if considering alternatives, as ceramic filter parameters are highly specific.
