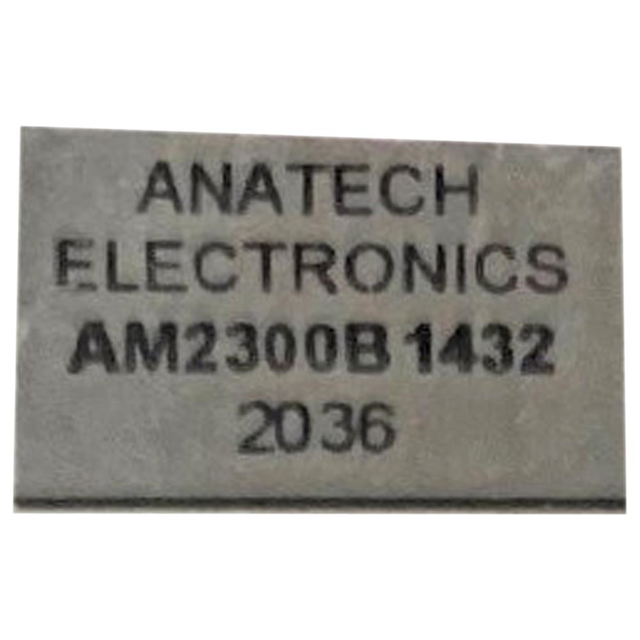

AM2300B1432

Overview

The AM2300B1432 is a ceramic band pass filter manufactured by Anatech Electronics Inc. It operates with a center frequency of 2.3 GHz and provides a bandwidth of 340 MHz, covering a range from 2.13 to 2.47 GHz. The component features an insertion loss characteristic and is designed for a 50 Ohm impedance system. It is housed in an 8-SMD module package, suitable for surface mount applications in RF circuits.

Feature Summary

• Utilizes ceramic construction for stable RF filtering performance
• Designed as a band pass filter with specified center frequency and bandwidth
• Configured for 50 Ohm impedance systems
• Available in an 8-SMD surface mount module package

Applications

• Commercial RF equipment
• Aerospace signal processing
• Defense communication systems

Procurement Notes

Verify the specific datasheet version and manufacturer documentation before integration. Confirm that the 8-SMD package dimensions and pinout match the target PCB layout. Ensure the operating environment aligns with the component's thermal and electrical specifications. Cross-reference the part number with official Anatech Electronics records to confirm current production status and availability constraints.

Selection Notes

Select this component when a fixed 2.3 GHz center frequency with 340 MHz bandwidth is required. The 50 Ohm impedance rating must match the system design. Consider the 8-SMD package size for space-constrained layouts. Verify compatibility with the intended application sector, such as commercial, aerospace, or defense, based on manufacturer capabilities.

Part Context

Anatech Electronics Inc. specializes in designing and manufacturing RF and microwave filters, diplexers, and components. The company serves commercial, aerospace, and defense markets. This filter is part of their portfolio of RF products designed for precise signal selection and interference rejection in high-frequency applications.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source material. Consult Anatech Electronics directly for potential alternatives or updated series replacements.
