AM2450B1063

Overview

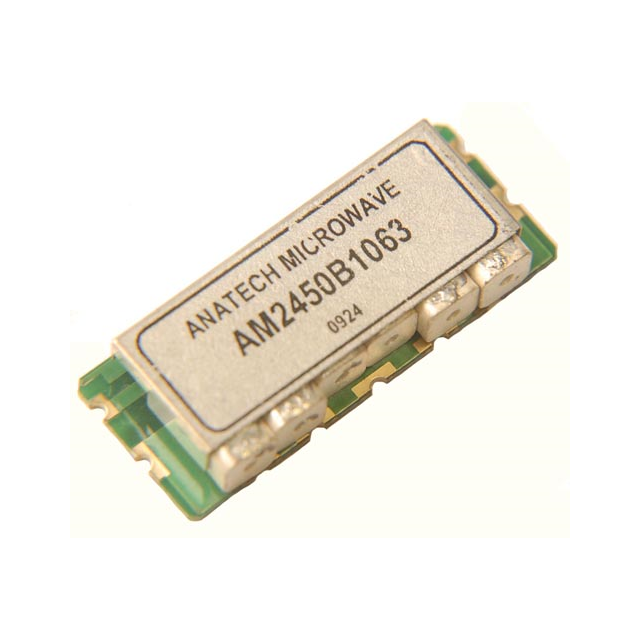

The AM2450B1063 is a ceramic band pass filter manufactured by Anatech Electronics Inc. It operates with a center frequency of 2.45 GHz and features a bandwidth of 50 MHz. The component is designed for a system impedance of 50 Ohms. It is housed in a 14-SMD module package, suitable for surface mount applications in RF circuits.

Feature Summary

• Utilizes ceramic technology for stable RF filtering performance
• Designed as a band pass filter for specific frequency selection
• Configured for 50 Ohm impedance matching systems

Applications

• RF signal processing modules
• Wireless communication equipment operating at 2.45 GHz
• Microwave circuit integration

Procurement Notes

Verify the exact datasheet specifications against your design requirements before procurement. Confirm that the 14-SMD package dimensions are compatible with your PCB layout. Ensure the manufacturer is Anatech Electronics Inc. to guarantee component authenticity and performance consistency.

Selection Notes

Select this component when a fixed 2.45 GHz center frequency with 50 MHz bandwidth is required. The 50 Ohm impedance rating must match the surrounding circuitry. Consider the 14-SMD form factor for space-constrained surface mount designs requiring ceramic filter stability.

Part Context

Anatech Electronics Inc. specializes in RF and microwave filters, diplexers, and components for commercial, aerospace, and defense applications. This company produces various ceramic filters tailored for specific frequency bands and impedance requirements.

FAQ

What is the center frequency of the AM2450B1063?

The center frequency is 2.45 GHz.

What type of package does this filter use?

It uses a 14-SMD module package.
