AM2535B1145

Overview

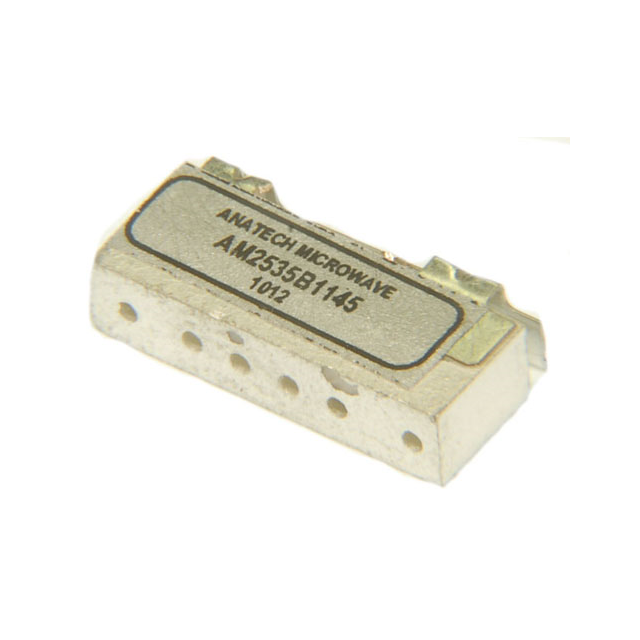

The AM2535B1145 is a ceramic band pass filter manufactured by Anatech Electronics Inc. It operates at a center frequency of 2535 MHz with a bandwidth of 70 MHz. The component features a 50 Ohm impedance and is housed in a 3-SMD module package. This device is designed for radio frequency applications requiring precise signal filtering within the microwave spectrum.

Feature Summary

• Utilizes ceramic construction for stable RF performance
• Provides band pass filtering functionality
• Designed for surface mount integration

Applications

• Radio frequency signal processing
• Microwave communication systems
• RF front-end filtering

Procurement Notes

Verify the specific datasheet version for the AM2535B1145 to confirm exact electrical tolerances and mechanical dimensions. Ensure compatibility with the target PCB layout and soldering profile. Confirm RoHS compliance status if required by project specifications, as manufacturing variations may exist between production batches.

Selection Notes

Select this component when a fixed 2535 MHz center frequency with 70 MHz bandwidth is required. The 50 Ohm impedance matches standard RF system designs. Consider the 3-SMD package size for space-constrained layouts. Evaluate thermal management requirements based on expected power levels in the application environment.

Part Context

Anatech Electronics Inc. specializes in RF and microwave filters, including standard and custom designs for military and commercial sectors. The company produces various components such as diplexers, multiplexers, and directional couplers. This filter represents their capability in providing specialized ceramic-based solutions for precise frequency selection.

Replacement Considerations

Check for the AM2535B1145-C variant, which indicates a connectedized configuration. Verify pinout and impedance matching before substituting. Consult official documentation for any functional differences between surface mount and connectorized versions.
