AM2595B1231

Overview

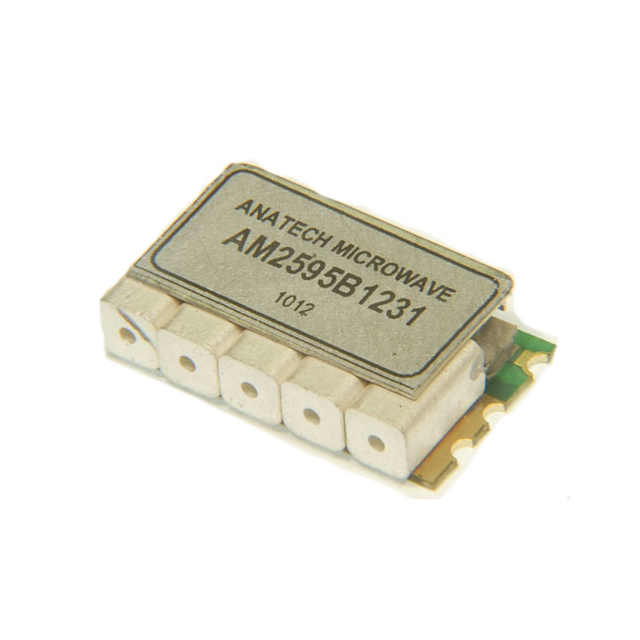

The AM2595B1231 is a ceramic band pass filter manufactured by Anatech Electronics Inc. It operates with a center frequency of 2595 MHz and provides a bandwidth of 50 MHz, covering a range from 2.57 to 2.62 GHz. The component features a 50 Ohm impedance and utilizes an 8-SMD module package. Its physical dimensions are 0.900 inches in length. The device is RoHS compliant and currently holds an active part status.

Feature Summary

• Utilizes ceramic construction for band pass filtering applications
• Designed for precise signal selection at 2595 MHz center frequency
• Compatible with standard 50 Ohm system impedance requirements

Applications

• RF signal processing circuits requiring specific frequency isolation
• Wireless communication systems operating within the 2.57-2.62 GHz range
• Electronic equipment utilizing SMD mounting configurations

Procurement Notes

Verify the exact ordering suffix when sourcing this component, as variations such as AM2595B1231-E may indicate specific compliance or packaging differences. Confirm that the received unit matches the 8-SMD module form factor and 0.900-inch length specifications. Ensure the supplier provides documentation confirming RoHS compliance and active part status to guarantee compatibility with current manufacturing standards.

Selection Notes

Select this component when a fixed 50 MHz bandwidth at 2595 MHz is required for RF filtering. The 50 Ohm impedance rating ensures integration into standard transmission line architectures. Consider the 8-SMD package size for PCB layout constraints, noting the 0.900-inch length dimension. This ceramic filter is suitable for applications demanding stable performance within the specified 2.57 to 2.62 GHz operational range.

Part Context

This component belongs to the family of ceramic band pass filters produced by Anatech Electronics Inc. These devices are engineered for high-frequency signal integrity in compact electronic assemblies. The AM2595B1231 specifically targets the 2.595 GHz frequency band, offering a defined 50 MHz bandwidth for selective signal passage while rejecting out-of-band interference in RF environments.

Replacement Considerations

Public confirmed substitute part numbers are not available in verified documentation.
