AM2595B1232

Overview

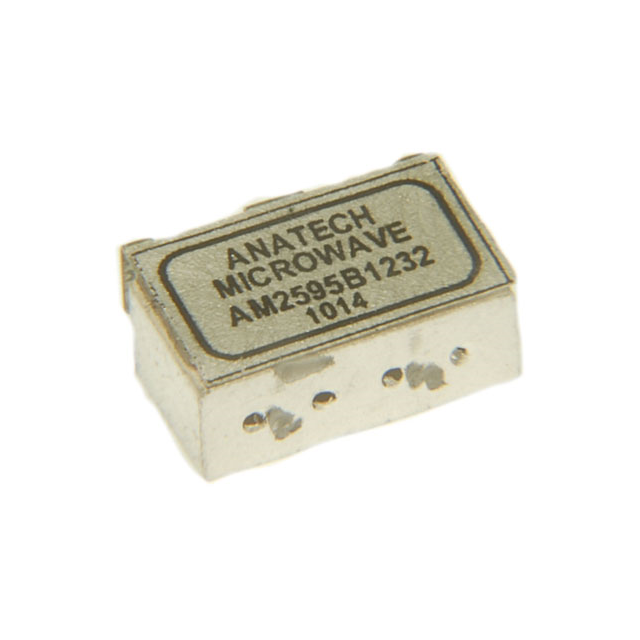

The AM2595B1232 is a ceramic bandpass filter manufactured by Anatech Electronics Inc. It operates at a center frequency of 2.595 GHz with a bandwidth of 50 MHz. The component features a characteristic impedance of 50 Ohms and is housed in a compact 3-SMD module package measuring 10.6 x 6.9 mm. Designed for RF applications, it provides signal filtering capabilities within the microwave spectrum.

Feature Summary

• Utilizes ceramic construction for stable RF performance
• Provides bandpass filtering functionality
• Designed for surface mount integration

Applications

• RF signal processing systems
• Microwave communication equipment
• Wireless infrastructure components

Procurement Notes

Verify the specific datasheet version from Anatech Electronics Inc. to confirm mechanical dimensions and electrical tolerances. Ensure compatibility with 50-Ohm system impedance requirements. Check RoHS compliance status if required for your manufacturing process. Confirm the 3-SMD package footprint matches your PCB layout constraints before ordering.

Selection Notes

Select this component when a fixed 2.595 GHz center frequency with 50 MHz bandwidth is required. The 50-Ohm impedance rating must match the surrounding circuit design. Consider the SMD package size for space-constrained layouts. Verify that the ceramic technology meets the thermal and environmental conditions of the intended application environment.

Part Context

Anatech Electronics Inc. specializes in RF and microwave filters, directional couplers, and power dividers. This company focuses on designing and manufacturing high-performance passive components for various electronic applications. The AM2595B1232 represents their capability in producing precise ceramic filters for specific frequency bands.

Replacement Considerations

No public substitute part numbers are confirmed in available documentation. Consult Anatech Electronics Inc. directly for potential equivalent models or updated series replacements.
