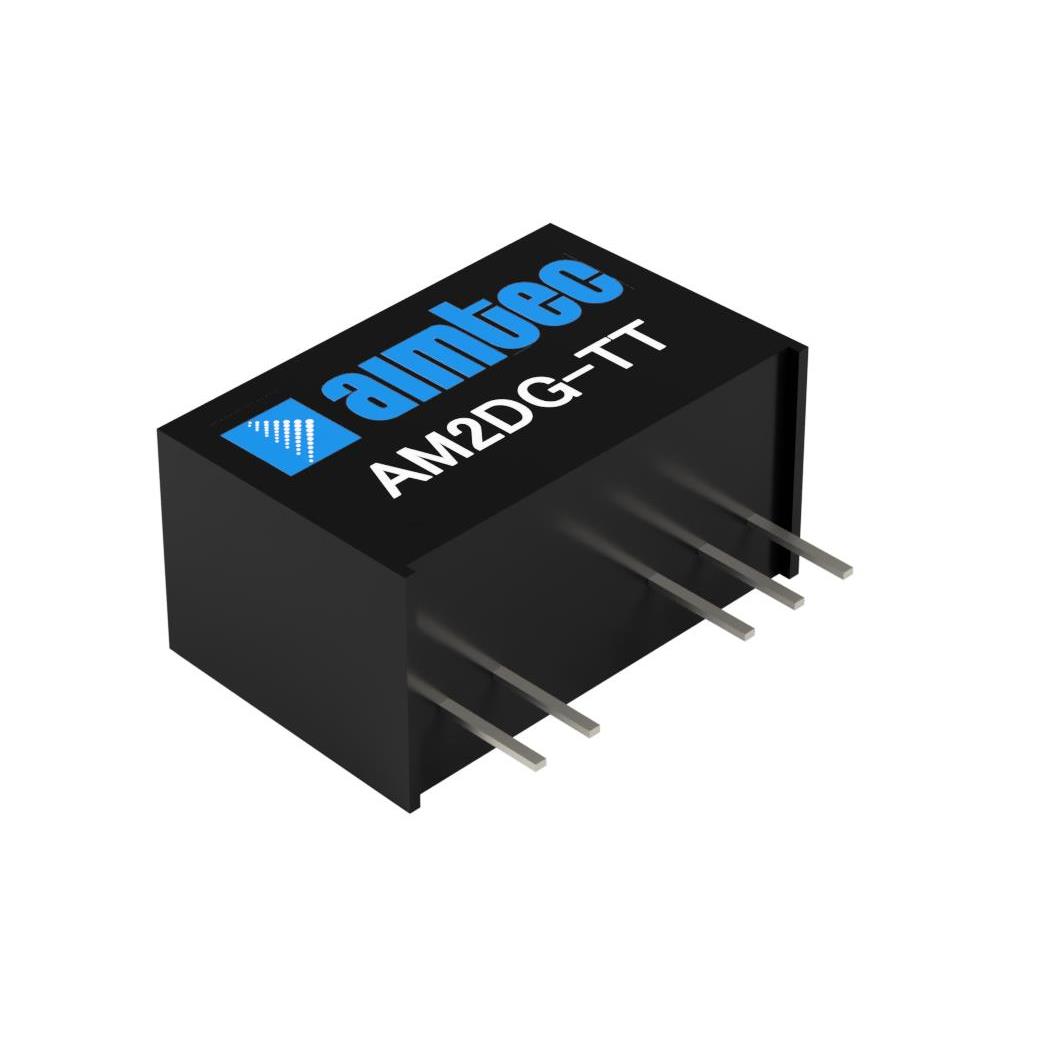

AM2DG-151503DH60TT is listed in the DC DC Converters range at ChipApex. The manufacturer field lists aimtec. Its product description is 13.5~16.5VDC -3~15VDC -0.1A 2W. Review the specifications below when checking this part for your BOM.
DC DC Converters specifications for AM2DG-151503DH60TT
- Description：13.5~16.5VDC -3~15VDC -0.1A 2W
- Series：AM2DG-TT
- Mfr：aimtec
- Package：Tube
- Type：Isolated Module
- Number of Outputs：2
- Voltage - Input (Min)：13.5V
- Voltage - Input (Max)：16.5V
- Voltage - Output 1：15V
- Voltage - Output 2：-3V
- Voltage - Output 3：-
- Voltage - Output 4：-
- Current - Output (Max)：100mA, 110mA
- Power (Watts)：2 W
- Voltage - Isolation：6.2 V
- Applications：ITE (Commercial)
- Features：SCP
- Operating Temperature：-40°C ~ 100°C (With Derating)
- Efficiency：77%
- Mounting Type：Through Hole
- Package / Case：7-SIP Module
- Size / Dimension：0.77" L x 0.39" W x 0.49" H (19.5mm x 9.8mm x 12.5mm)
- Supplier Device Package：7-SIP
- Control Features：-
- Approval Agency：CE
- Standard Number：62368-1
DC DC Converters datasheet and documents for AM2DG-151503DH60TT
