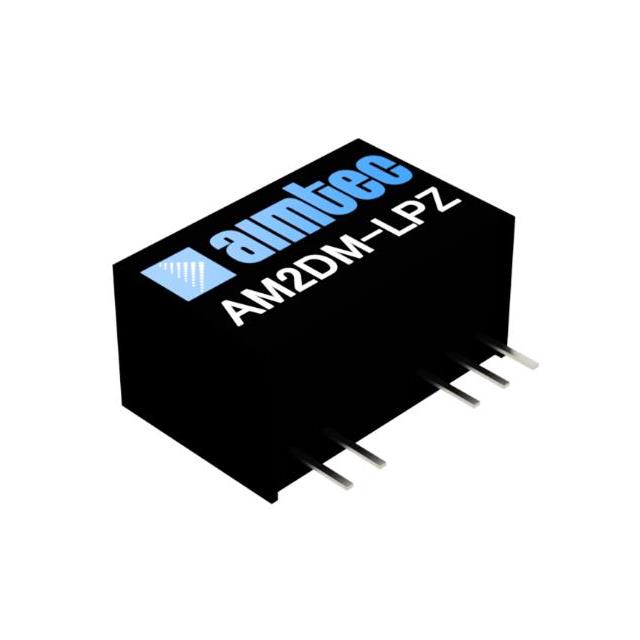

AM2DM-1215DH60LPZ is listed in the DC DC Converters range at ChipApex. The manufacturer field lists aimtec. Its product description is 10.8 13.2VDC 15VDC 0.07A 2W. Review the specifications below when checking this part for your BOM.
DC DC Converters specifications for AM2DM-1215DH60LPZ
- Description：10.8 13.2VDC 15VDC 0.07A 2W
- Series：AM2DM-LPZ (2W)
- Mfr：aimtec
- Package：Tube
- Type：Isolated Module
- Number of Outputs：2
- Voltage - Input (Min)：10.8V
- Voltage - Input (Max)：13.2V
- Voltage - Output 1：15V
- Voltage - Output 2：-15V
- Voltage - Output 3：-
- Voltage - Output 4：-
- Current - Output (Max)：70mA, 70mA
- Power (Watts)：2 W
- Voltage - Isolation：6 kV
- Applications：ITE (Commercial), Medical
- Features：-
- Operating Temperature：-40°C ~ 105°C (With Derating)
- Efficiency：80%
- Mounting Type：Through Hole
- Package / Case：7-SIP Module, 5 Leads
- Size / Dimension：0.77" L x 0.39" W x 0.49" H (19.5mm x 9.8mm x 12.5mm)
- Supplier Device Package：-
- Control Features：-
- Approval Agency：CE
- Standard Number：60601-1; 62368-1
- Grade：-
- Qualification：-
DC DC Converters datasheet and documents for AM2DM-1215DH60LPZ
