AM3100B1735

Overview

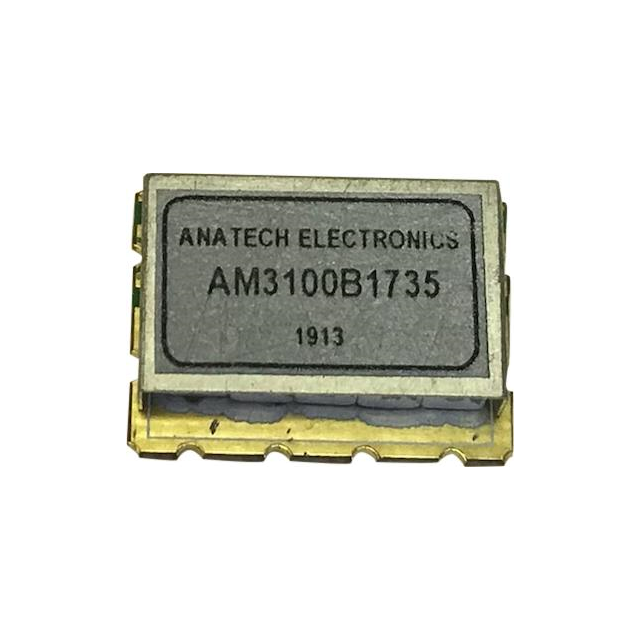

The AM3100B1735 is a ceramic band pass filter manufactured by Anatech Electronics Inc. It operates with a center frequency of 3.1 GHz and provides a bandwidth of 200 MHz. The component features a 50 Ohm impedance and is housed in a 12-SMD module package. The maximum height of the device is 0.177 inches (4.50 mm). This filter is designed for high-frequency signal processing applications requiring precise frequency selection within the specified range.

Feature Summary

• Ceramic construction for stable high-frequency performance
• Band pass filtering capability centered at 3.1 GHz
• Surface mount design for automated assembly integration

Applications

• RF signal conditioning in communication systems
• Frequency selection in wireless transceivers
• Interference rejection in microwave circuits

Procurement Notes

Verify that the specific part number matches the required center frequency and bandwidth specifications before procurement. Confirm the package type corresponds to the intended surface mount footprint on the PCB. Ensure compatibility with the system's impedance requirements. Check for any environmental certifications if operating in regulated industries.

Selection Notes

Select this component when a fixed center frequency of 3.1 GHz with a 200 MHz bandwidth is required. Consider the 12-SMD package size for space-constrained designs. Evaluate the ceramic material properties against thermal stability needs. Compare insertion loss and rejection characteristics if detailed electrical parameters are available in official documentation.

Part Context

This component belongs to the family of ceramic filters produced by Anatech Electronics Inc. These devices are engineered for radio frequency applications where compact size and reliable frequency response are critical. The AM3100B1735 represents a specific configuration within their broader portfolio of microwave and RF filtering solutions.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with alternative components by matching center frequency, bandwidth, impedance, and physical package dimensions.
