AM3400B998

Overview

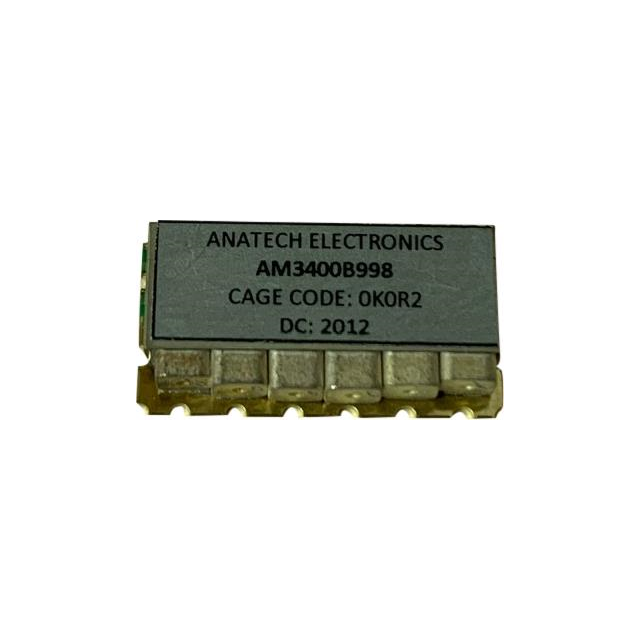

The AM3400B998 is a ceramic band pass filter manufactured by Anatech Electronics Inc. It operates with a center frequency of 3400 MHz and provides a bandwidth of 200 MHz. The component features an insertion loss of less than 2 dB and is designed for a system impedance of 50 Ohms. It utilizes a 16-SMD surface mount package, ensuring compatibility with automated assembly processes.

Feature Summary

• Utilizes ceramic construction for stable RF performance
• Designed as a band pass filter for signal selection
• Supports surface mount technology for PCB integration

Applications

• RF front-end filtering in communication systems
• Signal conditioning in wireless infrastructure
• Frequency selection in microwave circuits

Procurement Notes

Verify the specific datasheet version to confirm mechanical dimensions and terminal configurations before integration. Ensure that the 50 Ohm impedance rating matches the surrounding circuit design requirements. Check for RoHS compliance status if environmental regulations apply to the final product assembly.

Selection Notes

Select this component when a 3400 MHz center frequency with 200 MHz bandwidth is required. The low insertion loss specification makes it suitable for applications where signal integrity is critical. The surface mount package facilitates compact board layouts compared to through-hole alternatives.

Part Context

This part belongs to the family of ceramic band pass filters produced by Anatech Electronics Inc. These components are engineered for high-frequency applications requiring precise frequency control. The series typically offers robust performance in demanding RF environments.

Replacement Considerations

Cross-reference with other 3400 MHz ceramic filters from Anatech or compatible manufacturers. Verify that substitute parts maintain the same 200 MHz bandwidth and 50 Ohm impedance specifications to ensure circuit compatibility.
