AM3500B1035

Overview

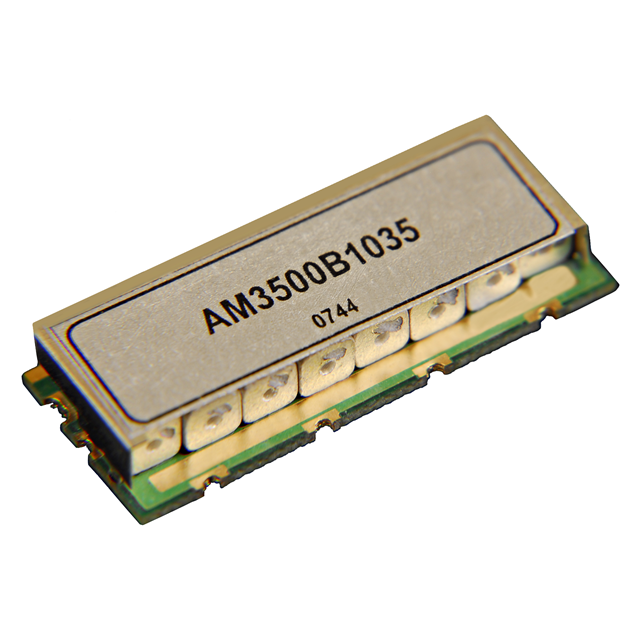

The AM3500B1035 is a ceramic band pass filter manufactured by Anatech Electronics Inc. It operates with a center frequency of 3500 MHz (3.5 GHz) and provides a bandwidth of 300 MHz, covering a range from 3350 to 3650 MHz. The component is designed for a system impedance of 50 Ohms and is housed in a 12-SMD module package.

Feature Summary

• Utilizes ceramic technology for stable band pass filtering performance
• Designed for precise signal selection within the 3.5 GHz frequency range
• Integrated surface mount module construction for circuit integration

Applications

• RF signal processing systems requiring 3.5 GHz band isolation
• Wireless communication infrastructure components
• Test and measurement equipment filters

Procurement Notes

Verify the specific datasheet version for insertion loss and rejection specifications before finalizing design integration. Confirm that the 12-SMD package dimensions align with the target PCB footprint. Ensure the 50 Ohm impedance rating matches the surrounding RF circuitry requirements to prevent signal reflection issues during operation.

Selection Notes

Select this component when a fixed 300 MHz bandwidth at 3.5 GHz is required. The ceramic construction offers durability suitable for industrial environments. Consider the SMD form factor for automated assembly processes. Validate thermal stability requirements against the manufacturer's published operating temperature range.

Part Context

Anatech Electronics Inc. specializes in high-performance microwave and RF components. This filter belongs to their ceramic filter series, which are engineered for applications demanding high selectivity and low insertion loss. The product line supports various frequency bands used in modern telecommunications and radar systems.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Verify compatibility with existing designs if sourcing alternatives.
