AM4000B1033

Overview

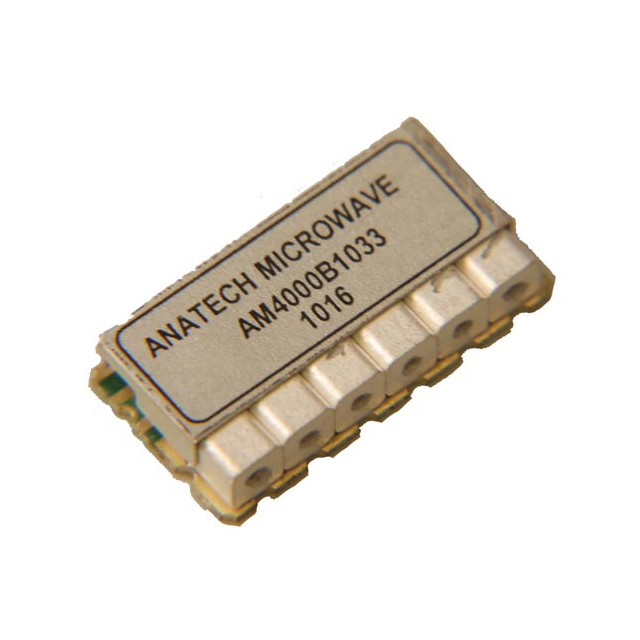

The AM4000B1033 is a ceramic bandpass filter manufactured by Anatech Electronics Inc. It operates with a center frequency of 4000 MHz and features a bandwidth of 100 MHz. The component maintains a 50 Ohm impedance and utilizes a 16-SMD module package. Key electrical specifications include an insertion loss of 3 dB. This device is designed for precise signal filtering applications within the specified frequency range.

Feature Summary

• Utilizes ceramic construction for stable bandpass filtering performance
• Designed for surface mount integration via 16-SMD module package
• Optimized for 50 Ohm system impedance compatibility

Applications

• RF signal processing circuits
• Wireless communication systems
• Test and measurement equipment

Procurement Notes

Verify the specific datasheet version to confirm RoHS compliance status, as sources indicate lead-free characteristics. Ensure the 16-SMD package dimensions align with PCB layout requirements. Confirm that the 3 dB insertion loss meets system sensitivity thresholds before finalizing procurement decisions.

Selection Notes

Select this component when a 4 GHz center frequency with 100 MHz bandwidth is required. The 16-SMD package facilitates automated assembly processes. Consider the 3 dB insertion loss impact on overall link budget. Verify thermal stability requirements against the operating temperature range specified in the official documentation.

Part Context

Anatech Electronics Inc. produces specialized RF filters including the AE4000B6454, which shares the 4000 MHz center frequency but differs in bandwidth and package type. The AM4000B1033 specifically addresses needs for compact surface-mount solutions with defined ceramic filter characteristics at this frequency point.

Replacement Considerations

Cross-reference with other 4 GHz ceramic bandpass filters offering similar 100 MHz bandwidth and 16-SMD packaging. Verify pinout compatibility and mechanical footprint alignment before substituting.
