Product Detailed Parameters
- Description：4500 MHz Ceramic Bandpass Filter
- Series：-
- Mfr：Anatech Electronics Inc.
- Package：Bulk
- Frequency：4.5GHz Center
- Impedance：50Ohm
- Bandwidth：480 MHz
- Insertion Loss：3dB
- Filter Type：Band Pass
- Mounting Type：Surface Mount
- Package / Case：16-SMD Module
- Size / Dimension：1.039" L x 0.551" W (26.40mm x 14.00mm)
- Height (Max)：0.195" (4.95mm)
Download product information
Overview

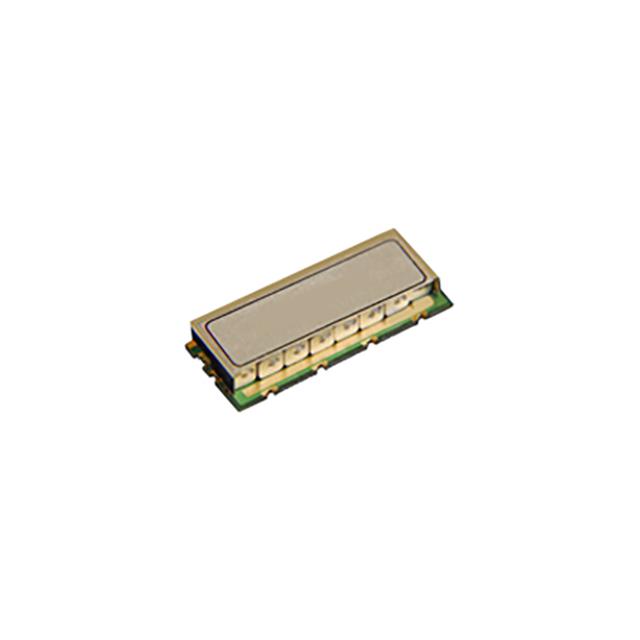

The AM4500B1126 is a ceramic bandpass filter manufactured by Anatech Electronics Inc. It operates with a center frequency of 4500 MHz and provides a bandwidth of 480 MHz, defined as Fo ± 240 MHz. The passband ranges from 4380 MHz to 4620 MHz. The component features a maximum Voltage Standing Wave Ratio (VSWR) of 1.7:1 and utilizes a 50-ohm impedance system. It is housed in a 16-SMD module package.
Feature Summary
- Utilizes ceramic construction for RF filtering applications
- Provides bandpass signal selection at microwave frequencies
- Designed for surface mount integration via SMD module packaging
Applications
- Commercial RF systems
- Aerospace communication equipment
- Defense electronic systems
Procurement Notes
Verify the specific datasheet version when sourcing, as manufacturer specifications may undergo revisions. Confirm that the 16-SMD package dimensions match your PCB footprint requirements precisely. Ensure the 50-ohm impedance rating aligns with your transmission line design. Cross-reference the center frequency and bandwidth parameters against your system's operational needs before finalizing procurement decisions.
Selection Notes
Select this component when a fixed 4500 MHz center frequency with 480 MHz bandwidth is required. The 1.7:1 VSWR limit indicates standard isolation performance suitable for general RF paths. Consider the 16-SMD form factor for automated assembly processes. Verify thermal stability requirements against the ceramic material properties specified in the official documentation.
Part Context
Anatech Electronics Inc. specializes in designing and manufacturing RF and microwave filters, diplexers, and related components. The company serves commercial, aerospace, and defense sectors. This part belongs to their ceramic filter product line, which focuses on precise frequency selection for high-frequency applications.
Replacement Considerations
No public substitute part numbers are documented for this specific model. Custom designs or spec matching services are available directly from the manufacturer if an exact replacement is unavailable.
FAQ
What is the passband range of the AM4500B1126?
The passband ranges from 4380 MHz to 4620 MHz.
What is the maximum VSWR specification?
The maximum Voltage Standing Wave Ratio is 1.7:1.
