AM4650B1220

Overview

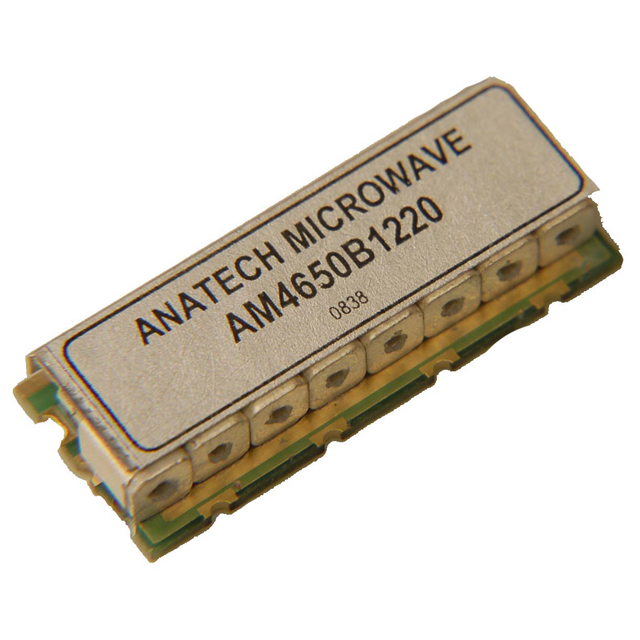

The AM4650B1220 is a ceramic band pass filter manufactured by Anatech Electronics Inc. It operates with a center frequency of 4650 MHz and provides a bandwidth of 500 MHz, covering a frequency range from 4400 to 4900 MHz. The component features an insertion loss of less than 4.0 dB and a return loss greater than 14 dB. It is designed for RF and microwave applications requiring precise signal filtering within the specified frequency band.

Feature Summary

• Ceramic construction for stable RF performance
• Band pass filtering capability centered at 4650 MHz
• Defined bandwidth of 500 MHz

Applications

• RF signal processing systems
• Microwave communication equipment
• Military and commercial filter applications

Procurement Notes

Verify the specific datasheet version and manufacturer documentation to confirm electrical parameters such as insertion loss and return loss limits. Ensure compatibility with system impedance and operating temperature ranges defined in official specifications before procurement.

Selection Notes

Select this component when a fixed center frequency of 4650 MHz with a 500 MHz bandwidth is required. Consider the ceramic material properties and specified insertion loss characteristics relative to system signal integrity requirements.

Part Context

Anatech Electronics Inc. specializes in the design and manufacturing of standard and custom RF filters for military and commercial sectors. The company produces various filter types including band pass, low pass, and high pass filters for diverse frequency applications.

Replacement Considerations

No public confirmed substitute part numbers are available for this component.
