AM4953GSTR-G1

Overview

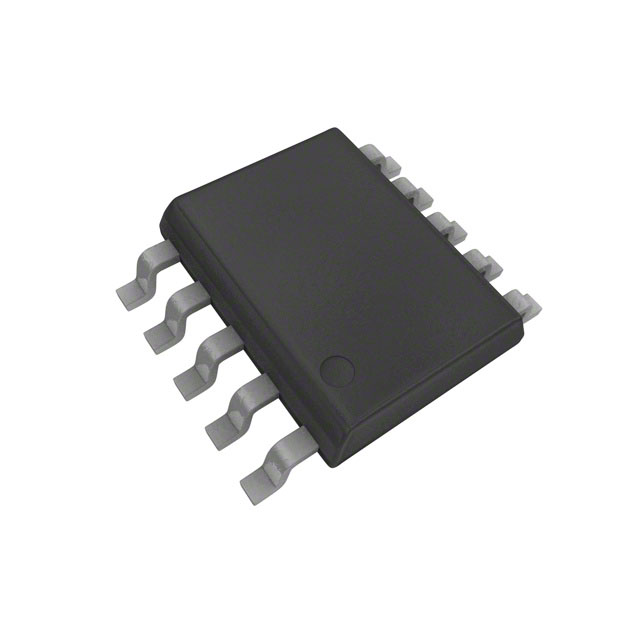

The AM4953GSTR-G1 is a single-phase motor driver from the AM495 series, manufactured by Diodes Incorporated. It is designed for brushless DC (BTL) motor applications with a supply voltage range up to 28V and a continuous output current capability of 500mA. The component integrates gate drive circuitry for efficient motor control. It is housed in a surface-mount package and is classified under Motor / Motion / Ignition Controllers & Drivers within the PMIC category.

Feature Summary

• Supports BTL drive configuration for single-phase motor control
• Integrated gate driver functionality for efficient switching
• Designed for low-voltage automotive and industrial motor applications

Applications

• Brushless DC motor control systems
• Single-phase fan speed regulation
• Automotive actuator drivers

Procurement Notes

Verify end-of-life status before design finalization as the component is marked obsolete. Confirm availability through authorized distributors only. Check RoHS compliance documentation for regulatory adherence. Ensure supply chain stability due to potential discontinuation risks associated with last-time-buy scenarios.

Selection Notes

Select this part for single-phase BTL motor applications requiring integrated gate driving. Compare against other AM495 series variants for pin compatibility and thermal performance. Verify voltage ratings match system requirements. Consider alternative components if long-term supply continuity is critical for the product lifecycle.

Part Context

Part of the AM495 series focusing on motor control solutions. Manufactured by Diodes Incorporated, it serves as a specialized driver for low-power motor applications. The series provides integrated solutions for phase control and gate driving in compact packages suitable for space-constrained designs.

Replacement Considerations

No officially confirmed substitute part numbers are documented in the provided source material.
