AM707B1237

Overview

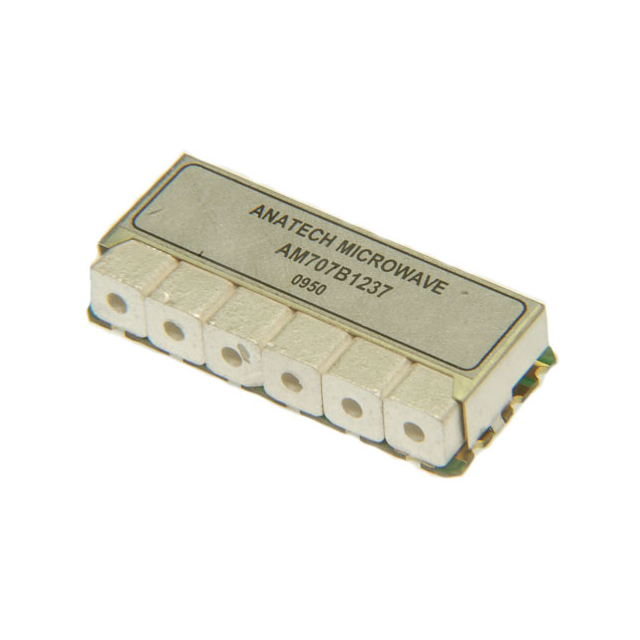

The AM707B1237 is a ceramic band pass filter manufactured by Anatech Electronics Inc. It operates with a center frequency of 707 MHz and features a bandwidth of 9 MHz. The component is designed for a system impedance of 50 Ohms. It is housed in an 18-SMD module package, suitable for surface mount applications.

Feature Summary

• Provides band pass filtering characteristics centered at 707 MHz
• Utilizes ceramic technology for signal processing
• Designed for 50 Ohm impedance systems

Applications

• RF signal filtering in communication equipment
• Intermediate frequency stages in receivers
• Band selection in wireless transceivers

Procurement Notes

Verify the specific datasheet version to confirm insertion loss and rejection specifications required for your circuit design. Ensure the 18-SMD footprint matches your PCB layout constraints. Confirm RoHS compliance status if environmental regulations apply to your manufacturing process. Cross-reference pin assignments with official documentation before assembly.

Selection Notes

Select this component when a fixed 707 MHz center frequency with 9 MHz bandwidth is required. The 50 Ohm impedance rating must match the surrounding RF circuitry. The SMD package type dictates the assembly method. Consider thermal management requirements associated with the ceramic module construction during integration.

Part Context

This part belongs to the Anatech Electronics Inc. ceramic filter series. These components are engineered for stable performance in RF environments. The 707 MHz designation indicates the specific resonant frequency target. The product line focuses on compact, high-reliability filtering solutions for electronic systems.

Replacement Considerations

No public substitute part numbers are confirmed in available documentation. Verify electrical compatibility including center frequency, bandwidth, and impedance if considering alternatives from other manufacturers.
