AM751B1183

Overview

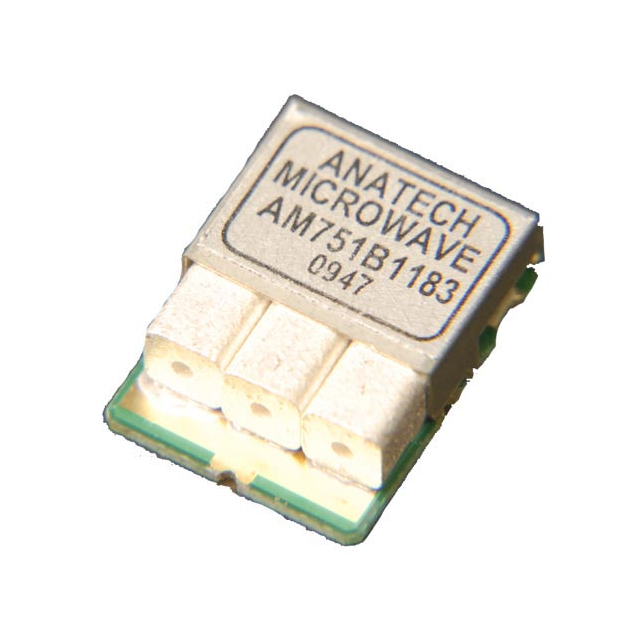

The AM751B1183 is a ceramic band pass filter manufactured by Anatech Electronics Inc. It features a center frequency of 751 MHz and operates with a 50 Ohm impedance. The device has a maximum passband insertion loss of 3.0 dB and a maximum ripple of 1.0 dB. It provides minimum rejection of 25 dB at 571.2-581.2 MHz and 15 dB at 777-787 MHz. The bandwidth is 10 MHz, and the maximum height is 0.217 inches (5.50 mm).

Feature Summary

• Provides selective signal filtering within a defined bandwidth centered at 751 MHz.
• Designed for surface mount integration into electronic circuits.
• Ensures signal integrity through controlled insertion loss and ripple characteristics.

Applications

• RF communication systems requiring specific frequency selection.
• Wireless infrastructure equipment operating near 751 MHz.
• Test and measurement instrumentation for signal analysis.

Procurement Notes

Verify component authenticity by checking manufacturer markings against official datasheets. Confirm package dimensions and pin configuration match system requirements. Ensure environmental compliance status aligns with project specifications. Validate electrical parameters such as insertion loss and rejection levels during incoming inspection to guarantee performance in final assembly.

Selection Notes

Select this component when a fixed center frequency of 751 MHz is required. Consider the 10 MHz bandwidth for narrowband applications. Evaluate the 50 Ohm impedance compatibility with existing circuitry. Assess the surface mount package size for PCB layout constraints. Review rejection specifications to ensure adequate interference suppression for the target environment.

Part Context

This part belongs to the family of ceramic band pass filters produced by Anatech Electronics Inc. These components are engineered for high stability and precise frequency response in radio frequency applications. The series typically offers robust performance in compact packages suitable for modern electronics manufacturing processes.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Verify compatibility with alternative components based on identical electrical specifications and physical dimensions before implementation.
