AM782B1184

Overview

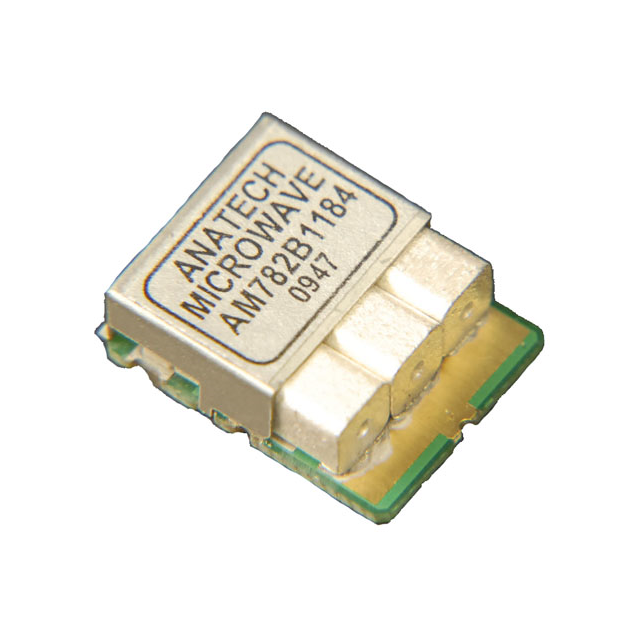

The AM782B1184 is a ceramic band pass filter manufactured by Anatech Electronics Inc. It operates at a center frequency of 782 MHz with a bandwidth of 10 MHz. The component features a 50 Ohm impedance and an insertion loss of 4 dB. It is housed in an 8-SMD module package, measuring approximately 0.669 inches in length. This active component is designed for precise signal filtering applications requiring stable performance at the specified microwave frequency.

Feature Summary

• Utilizes ceramic technology for band pass filtering
• Designed for 50 Ohm system integration
• Compact surface mount module construction

Applications

• RF signal processing circuits
• Wireless communication systems
• Microwave receiver front-ends

Procurement Notes

Verify the specific datasheet version and RoHS compliance status directly with Anatech Electronics Inc. or authorized distributors before procurement. Confirm that the 8-SMD package dimensions align with your PCB layout requirements. Ensure the operating temperature range meets your environmental specifications. Cross-reference the part number to avoid confusion with similar frequency filters from other manufacturers.

Selection Notes

Select this component when a fixed 782 MHz center frequency with 10 MHz bandwidth is required. Consider the 4 dB insertion loss impact on system gain. Evaluate the 8-SMD footprint against available board space. Compare performance against alternative ceramic filters if tighter bandwidth or lower loss is necessary for the specific application design.

Part Context

This part belongs to the Anatech Electronics Inc. ceramic filter series, which provides passive RF components for microwave frequencies. These filters are typically used in conjunction with amplifiers and mixers in communication hardware. The AM782B1184 represents a standard solution for band selection in specialized RF infrastructure.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Verify compatibility with any potential alternatives by matching center frequency, bandwidth, impedance, and physical package dimensions.
