AM806B1336

Overview

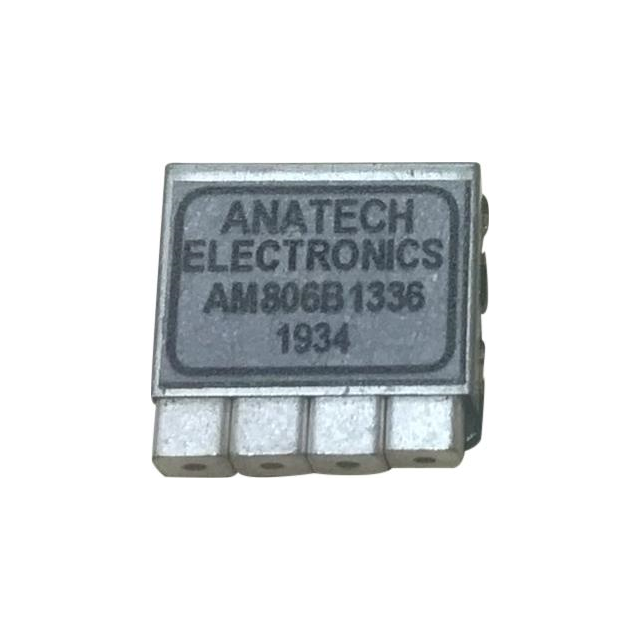

The AM806B1336 is a ceramic band pass filter manufactured by Anatech Electronics Inc. It operates with a center frequency of 806 MHz and provides a bandwidth of 30 MHz, covering the range from 791 to 821 MHz. The component features an insertion loss of 3.5 dB and is designed for a 50 Ohm system impedance. It is housed in an 8-SMD module package with physical dimensions of 14.00mm x 13.00mm.

Feature Summary

• Utilizes ceramic technology for stable band pass filtering performance
• Engineered for precise center frequency operation at 806 MHz
• Designed for surface mount integration via 8-SMD module packaging

Applications

• RF signal processing in communication systems
• Frequency selection in wireless infrastructure
• Signal conditioning in electronic modules requiring 50 Ohm impedance matching

Procurement Notes

Verify the specific datasheet version for the AM806B1336 to confirm exact electrical tolerances and mechanical drawings before integration. Ensure that the 8-SMD footprint matches the target PCB layout dimensions of 14.00mm x 13.00mm. Confirm that the 3.5 dB insertion loss meets the system link budget requirements. Check for any RoHS or environmental compliance documentation required for the specific manufacturing batch.

Selection Notes

Select this component when a fixed 806 MHz center frequency with 30 MHz bandwidth is required. The 50 Ohm impedance rating must align with the surrounding RF circuitry. Consider the 8-SMD package size if space constraints allow for a 14.00mm x 13.00mm footprint. Evaluate the 3.5 dB insertion loss against system sensitivity needs. This part is suitable for applications demanding ceramic filter stability without active components.

Part Context

Anatech Electronics Inc. produces the AM806B1336 as part of its ceramic filter portfolio. This series includes various band pass filters tailored for different frequency ranges. The AM806B1336 specifically targets the 806 MHz band, distinguishing it from other models like the AM1740B1206 which operates at higher frequencies. These components are typically used in specialized RF applications requiring passive filtering solutions.

Replacement Considerations

No public confirmed substitute part numbers are available for the AM806B1336.
