AM806B1362

Overview

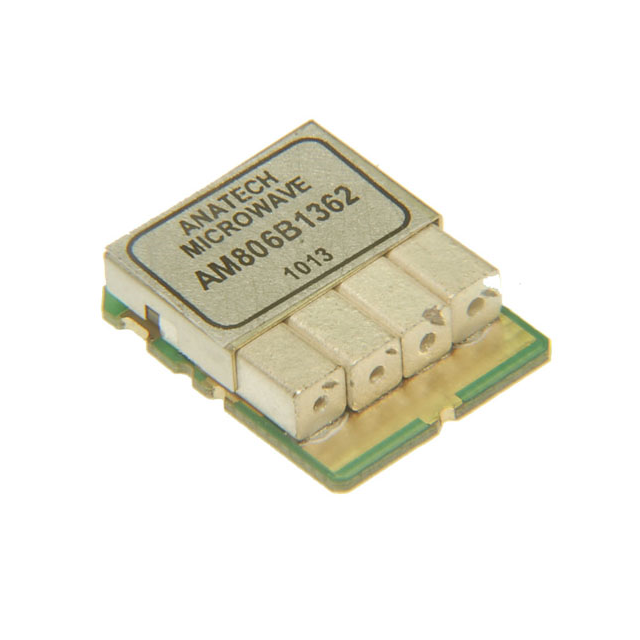

The AM806B1362 is a ceramic bandpass filter manufactured by Anatech Electronics Inc. Designed for surface mount applications, this component operates with an input and output impedance of 50 Ohms. It features a center frequency of 806 MHz and a bandwidth of 30 MHz. The device exhibits a minimum Voltage Standing Wave Ratio (VSWR) of 1.7:1 at the center frequency and provides an insertion loss of 3.5 dB. Packaged in an 8-SMD module configuration, it is RoHS compliant and lead-free.

Feature Summary

• Ceramic construction for stable signal filtering
• Surface mount 8-SMD module packaging
• RoHS compliant and lead-free manufacturing

Applications

• RF signal processing circuits
• Wireless communication systems
• Base station equipment

Procurement Notes

Verify the specific datasheet version to confirm electrical tolerances and pinout configurations before integration. Ensure compatibility with 50-Ohm system impedance requirements. Check for RoHS compliance documentation if required by regulatory standards. Confirm surface mount footprint dimensions against PCB layout specifications to ensure proper assembly and thermal management during soldering processes.

Selection Notes

Select this component when a narrowband ceramic filter is required at 806 MHz with low insertion loss. The 8-SMD package suits automated surface mount assembly lines. Consider the 30 MHz bandwidth relative to signal requirements. Verify that the 1.7:1 VSWR meets reflection coefficient limits for the specific RF chain application.

Part Context

This part belongs to the Anatech Electronics Inc. ceramic filter series, which specializes in fixed-frequency bandpass solutions. These components are engineered for high Q-factor performance in compact form factors. The AM806B1362 specifically targets applications requiring precise frequency selection in the 800 MHz range with minimal signal degradation.

Replacement Considerations

Cross-reference with other 806 MHz ceramic bandpass filters from Anatech or compatible manufacturers. Verify identical impedance, bandwidth, and package dimensions before substitution. Ensure replacement parts meet the same RoHS and lead-free standards.
