Product Detailed Parameters
- Description：IC MOTOR DRIVER 2.2V-6V 16SSOP
- Series：-
- Mfr：Diodes Incorporated
- Package：Tape & Reel (TR)
- Motor Type - Stepper：-
- Motor Type - AC, DC：Brushless DC (BLDC)
- Function：Driver - Fully Integrated, Control and Power Stage
- Output Configuration：Half Bridge (3)
- Interface：PWM
- Technology：Power MOSFET
- Step Resolution：-
- Applications：General Purpose
- Current - Output：700mA
- Voltage - Supply：2.2V ~ 6V
- Voltage - Load：2.2V ~ 6V
- Operating Temperature：-30°C ~ 95°C (TA)
- Mounting Type：Surface Mount

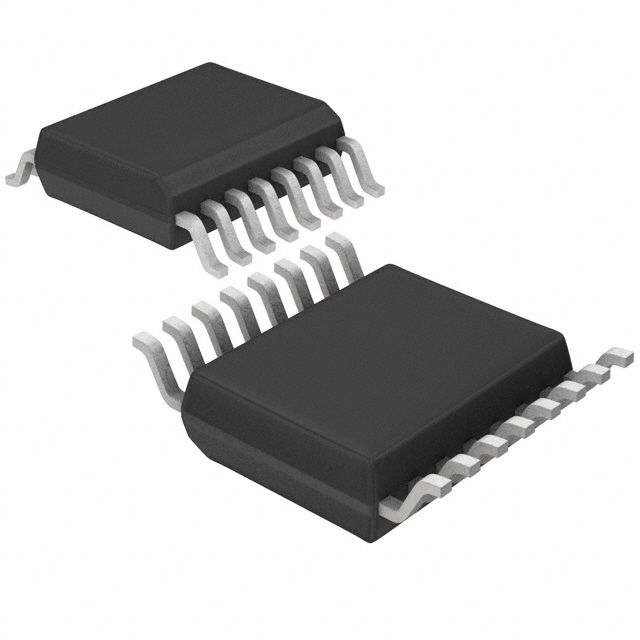

- Package / Case：16-SSOP (0.154", 3.90mm Width)
- Supplier Device Package：16-SSOP
- Grade：-
- Qualification：-
Download product information
Overview
The AM9800GSTR-G1 is a low-voltage audio amplifier manufactured by Diodes Incorporated. It belongs to the AM98 series and is classified under Motor, Motion, and Ignition Controllers & Drivers within the PMIC category. The device is designed for audio applications requiring low voltage operation.
Feature Summary
- Designed as an audio low voltage amplifier
- Part of the AM98 product series
Applications
- Audio signal amplification in low voltage systems
Procurement Notes
Verify current availability status directly with the manufacturer or authorized distributors, as supply constraints may apply. Confirm RoHS compliance details through official documentation before integration. Check for any recent Product Change Notifications (PCN) regarding assembly or test site modifications that could impact qualification.
Selection Notes
Select this component for applications requiring a dedicated low-voltage audio amplifier solution from the AM98 family. Ensure system power rails align with the device's operational requirements. Consider the SMD/SMT packaging format for surface mount assembly processes.
Part Context
Diodes Incorporated produces a broad portfolio of analog and power solutions for automotive, industrial, and consumer markets. The AM98 series represents their offerings in specialized driver and amplifier categories, supporting high-growth application segments through flexible manufacturing and global engineering support.
Replacement Considerations
The datasheet indicates this part is End-of-Life (EOL). Manufacturers have announced it will be obsolete and discontinued. Engineers should identify alternative components from the same manufacturer or compatible third-party suppliers to ensure long-term supply chain stability.
