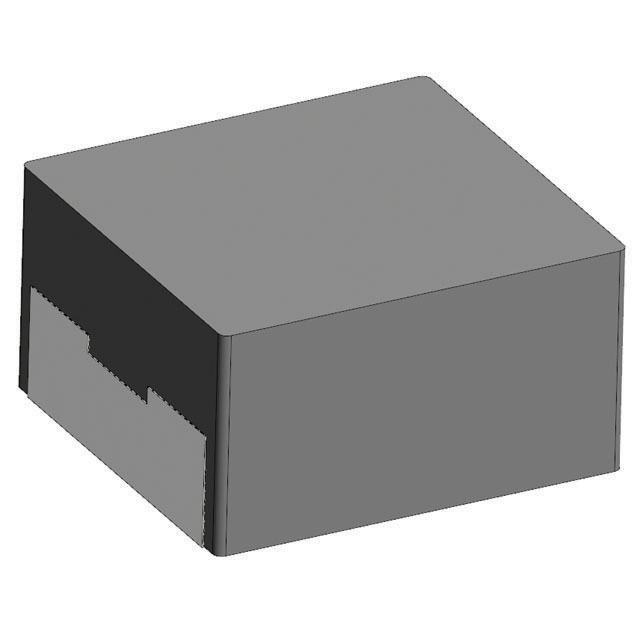

AMDLA2213S-230MT

$7.95

Description：FIXED IND 23UH 18A 11 MOHM SMD
Series：AMDLA2213S
Mfr：Abracon LLC
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:5d7ae4c7879e Category: Fixed Inductors Brand: Abracon LLC

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

AMDLA2213S-230MT is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists Abracon LLC. Its product description is FIXED IND 23UH 18A 11 MOHM SMD. Review the specifications below when checking this part for your BOM.

Fixed Inductors specifications for AMDLA2213S-230MT

Description：FIXED IND 23UH 18A 11 MOHM SMD
Series：AMDLA2213S
Mfr：Abracon LLC
Package：Tape & Reel (TR),Cut Tape (CT)
Type：Molded
Material - Core：Metal
Inductance：23 µH
Tolerance：±20%
Current Rating (Amps)：18 A
Current - Saturation (Isat)：14A
Shielding：Shielded
DC Resistance (DCR)：11mOhm Max
Q @ Freq：-
Frequency - Self Resonant：-
Ratings：-
Operating Temperature：-55°C ~ 155°C
Inductance Frequency - Test：100 kHz
Mounting Type：Surface Mount
Package / Case：Nonstandard
Supplier Device Package：-
Size / Dimension：0.925" L x 0.866" W (23.50mm x 22.00mm)
Height - Seated (Max)：0.512" (13.00mm)
Features：-

Fixed Inductors datasheet and documents for AMDLA2213S-230MT

AMDLA2213S-230MT

Fixed Inductors Overview

The Abracon AMDLA2213S-230MT is a shielded, molded surface-mount power inductor from the AMDLA2213S series. It features a metal alloy core and offers an inductance of 23 µH with a ±20% tolerance. The component supports a temperature rise current of 18 A and has a maximum DC resistance of 11 mΩ. Designed for PCB mounting, it operates within a temperature range of -55°C to +155°C and is tested at 100 kHz.

Fixed Inductors Feature Summary

Shielded molded construction utilizing a metal alloy core to minimize electromagnetic interference.
High current handling capability suitable for demanding power supply applications.
Wide operating temperature range ensuring reliability across diverse environmental conditions.

Fixed Inductors Applications

DC/DC switching converters
General power supplies

Fixed Inductors Procurement Notes

Verify the specific part number against official Abracon documentation to confirm availability and lead times. Ensure that the selected packaging format aligns with your assembly requirements. Cross-reference electrical parameters such as saturation current and DC resistance with your circuit design specifications before finalizing procurement decisions.

Fixed Inductors Selection Notes

Select this component when high inductance values are required in a compact surface-mount footprint. The shielded design makes it suitable for applications sensitive to magnetic field leakage. Consider the thermal performance and current ratings to ensure compatibility with the intended power density and operational environment constraints.

Fixed Inductors Part Context

This component belongs to the AMDLA2213S series of high-power molded inductors manufactured by Abracon LLC. These components are designed for commercial off-the-shelf applications and are not specifically qualified for automotive, military, or aerospace environments. The series provides robust performance for general-purpose power electronics.
